📝 ACASOM ROC-5 External Antenna 2.4G / 5.2G / 5.8G 20W
ACASOM ROC-5 external antenna is a professional tri-band signal amplification system for unmanned systems that combines a powerful amplifier, autonomous power supply and a solar panel. The system is designed to significantly increase control range, video link stability and operation in difficult radio interference environments.
The antenna operates in 2.4 GHz, 5.2 GHz and 5.8 GHz bands and provides high transmission power, allowing stable communication over long distances. Thanks to the built-in battery and folding solar panel, the system can operate autonomously without generators or stationary power, making it a fully mobile field communication station.
The housing is made of aluminum alloy with IP68 protection, allowing the system to operate in harsh weather conditions, dust, rain and large temperature differences. The system can be used as a stationary antenna, remote antenna on a cable, or as an autonomous signal amplification station for drone operations.
🫡 We are a team of veterans
We are a team of veterans and we understand that stable drone communication is often more important than the drone itself. External amplified antennas significantly increase operating range, improve video stability and allow the antenna to be placed away from the operator for safer operation.
Autonomous systems with solar panels are especially important for long-term missions, observation and reconnaissance where there is no access to power grid or generators. Such systems allow building a fully autonomous drone control station in field conditions.
We select equipment that is actually used by UAV operators and we understand how important communication reliability, autonomy and ease of use are in field conditions.
⚙️ Specifications
| Specification | Value |
|---|---|
| Model | ACASOM ROC-5 |
| Type | Active external antenna |
| Frequency ranges | 2.3–2.4 GHz / 2.4–2.5 GHz / 5.0–5.3 GHz / 5.7–5.9 GHz |
| Supported bands | 2.4G / 5.2G / 5.8G |
| Maximum power | up to 40 dBm (10–20 W) |
| RX gain | 12–16 dB |
| TX gain | 19–20 dB |
| Noise figure | < 2.2 dB |

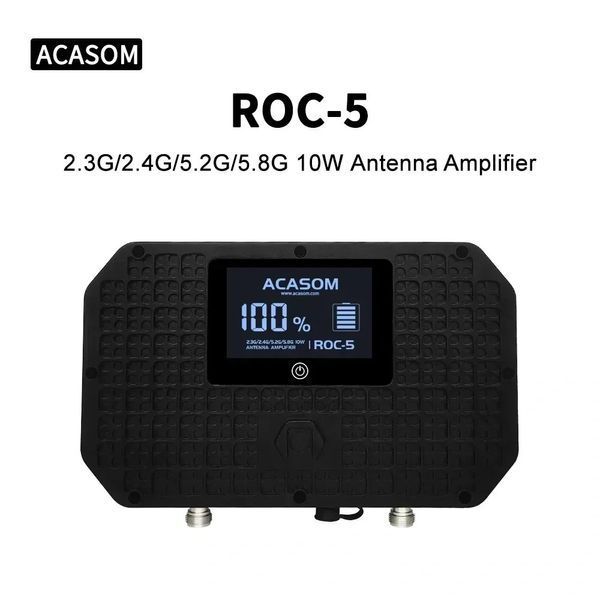

| Battery capacity | 6000 mAh |
| Autonomous operating time | Up to 4 hours |
| Solar panel | 50 W |
| Protection class | IP68 |
| Housing material | Aluminum alloy |
| Operating temperature | -30°C to +70°C |

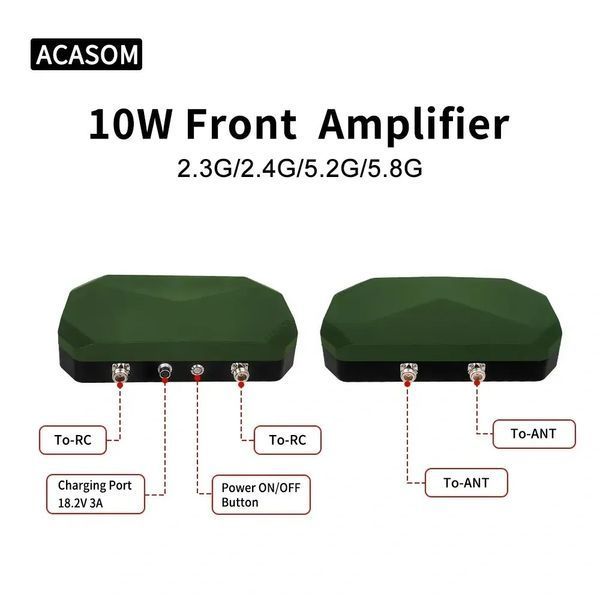

| Connectors | N-Type / sealed |
| Weight | approx. 1.7 kg |
💬 Comment / comments
ACASOM ROC-5 is essentially an autonomous signal amplification station for unmanned systems. The main advantage is the combination of a powerful signal amplifier, battery and solar panel, allowing operation without generators and external power sources.
Low noise figure allows receiving weak signals at long distances, and high transmission gain ensures stable control and video link. The sealed housing allows operation in harsh weather and during long-term outdoor use.

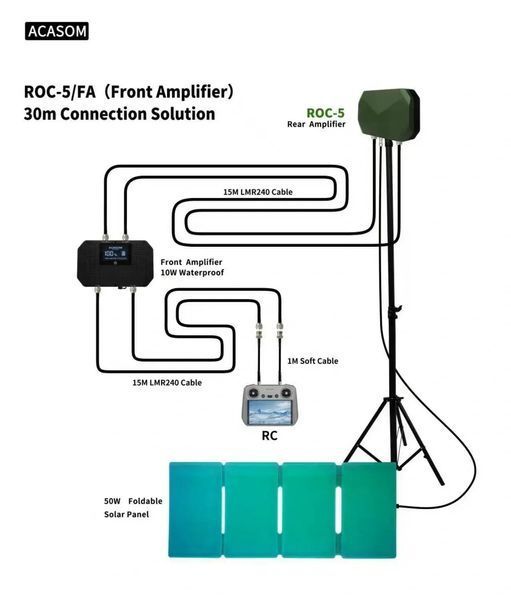

The system can be used as a stationary antenna, remote antenna on a cable, or autonomous signal relay station.
🎯 Suitable for
Military personnel. The system is primarily designed for UAV reconnaissance units and drone operators. The remote antenna allows increasing drone control range, improving video link stability and placing the antenna away from the operator, which increases safety during operation. Autonomous power and solar panel allow long-term operation without generators or power grid. This is especially important for mobile teams operating in field conditions or remote positions. The system is suitable for DJI, Autel, FPV drones and other unmanned platforms.
UAV and FPV operators. For drone operators this antenna significantly improves signal stability and video link quality, especially at long distances. Multi-band operation allows selecting less noisy frequencies and achieving more stable communication. The remote antenna design allows placing the antenna higher or in a better line-of-sight position. This improves both control and video transmission stability. The system can be used as a stationary or portable antenna system.
Surveillance and security units. Can be used to organize stable radio links and operate unmanned systems at long distances. Suitable for territory monitoring, security operations and observation tasks. Autonomous power allows operation in remote locations without infrastructure.
Technical specialists and radio operators. The system can be used for signal amplification in 2.4 and 5 GHz bands and building autonomous communication systems. Suitable for various radio systems, wireless data links and experimental communication setups.
