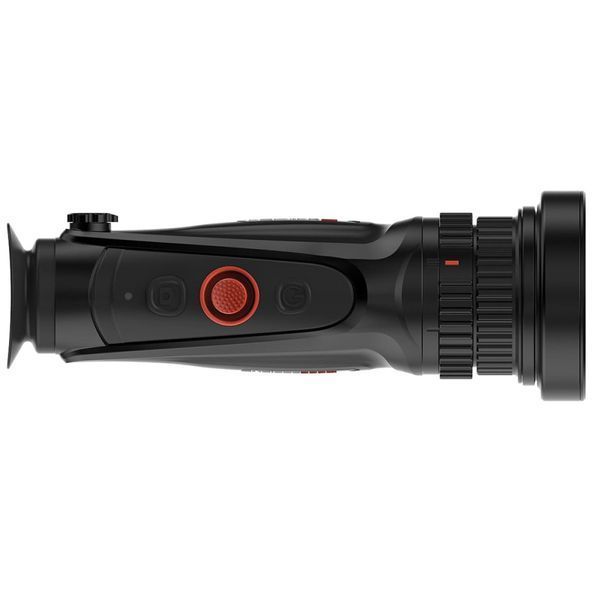

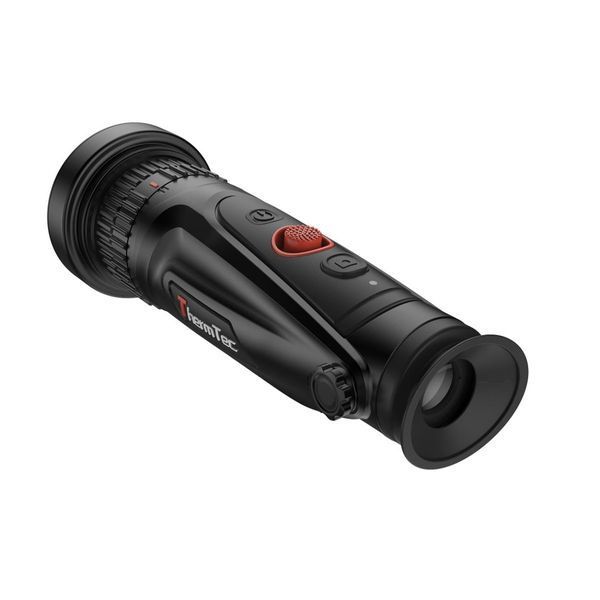

📝 Thermal Imager ThermTec Cyclops 670D

Thermal Imager ThermTec Cyclops 670D is a long-range thermal monocular equipped with a dual optical system of 35/70 mm and a 640×512 (12 µm) VOx Ceramic sensor, providing highly detailed thermal imaging and reliable detection of heat targets at extended distances. With thermal sensitivity NETD ≤25 mK and a 50 Hz refresh rate, the device ensures stable performance in complete darkness, fog, smoke, and challenging environmental conditions.

Thermal Imager ThermTec Cyclops 670D features an innovative dual-field optical design that allows instant switching between the 35 mm and 70 mm objectives, changing from a wide field of view to a narrow, long-range observation mode without sacrificing image sharpness. AI-based object recognition, intelligent distance estimation, GPS positioning, and bidirectional Wi-Fi connectivity significantly expand observation, data transmission, and coordination capabilities in real time.

🫡 We are a team of veterans

We evaluate thermal imaging devices in conditions close to real operational deployment, where detection range, rapid optical switching, and stable long-range imagery are critical factors. In practical field use, Thermal Imager ThermTec Cyclops 670D demonstrates high efficiency due to the combination of a 640×512 sensor and dual 35/70 mm optics, enabling both wide-area terrain scanning and precise long-range target observation.

AI algorithms automatically recognize heat signatures of humans and animals and estimate their distance, significantly simplifying the operator’s workflow during detection and tracking tasks. The rugged IP67-rated housing, electronic image stabilization, and up to 12 hours of autonomous operation make the device suitable for prolonged missions, reconnaissance operations, and continuous surveillance in demanding field conditions.

⚙️ Specifications

Parameter	Value
Manufacturer	ThermTec
Model	Cyclops 670D
Sensor	VOx Ceramic, 12 µm
Sensor Resolution	640×512
Thermal Sensitivity	NETD ≤25 mK
Frame Rate	50 Hz
Objective Lens	35 mm F0.9 / 70 mm F1.0
Field of View	12.5°×10.0° / 6.3°×5.0°
Field of View at 100 m	21.9 m / 11.0 m
Optical Magnification	2× – 4×
Digital Zoom	1× – 6×
Display	OLED, 1024×768
Detection Range (human)	Up to 1750 / 3600 m
Memory	32 GB built-in
Functions	AI recognition, stadia rangefinder, EIS, Wi-Fi, GPS, photo/video recording
Power Supply	2× Li-ion 18650 batteries
Operating Time	≥ 12 hours
Protection Rating	IP67
Operating Temperature	−20…+55 °C
Dimensions	228×83×83 mm
Weight	780 g

💬 Comment / comments

ThermTec Cyclops 670D is designed for long-range thermal surveillance tasks where maximum detection distance, optical flexibility, and thermogram stability are required. The dual 35/70 mm optical system allows the operator to rapidly adapt the device to changing observation distances without losing time on adjustments.

The 640×512 sensor delivers highly informative thermal imagery, which is critical for reliable target identification at extended ranges. AI recognition, GPS, and bidirectional Wi-Fi expand the device’s operational capabilities, enabling integration into coordinated surveillance systems and real-time video sharing during missions.

🎯 Who is it suitable for

Military units, UAV operators, reconnaissance teams, and observation groups that require a long-range thermal imager with a 640×512 sensor and dual 35/70 mm optics for detecting targets at distances beyond 3 km.

Security agencies and special services responsible for monitoring large territories, borders, and strategic facilities with the ability to quickly switch between wide-area scanning and detailed long-range observation.

Rescue services and search teams operating in low-visibility environments — at night, in fog, or in smoke — where maximum detection range and accurate distance estimation are essential.

Hunters, ranger services, and professional observers who need a high-precision thermal imaging device with dual optics, extended detection range, and reliable performance in demanding field conditions.
