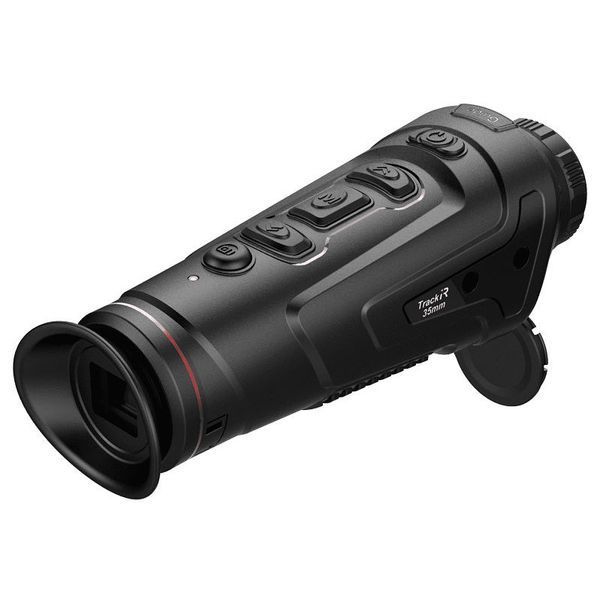

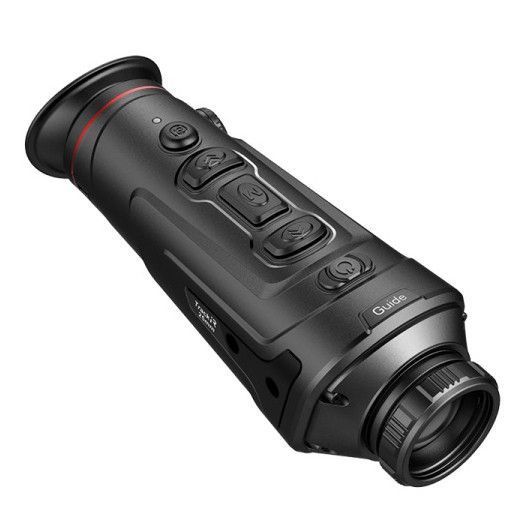

Guide TrackIR Pro 35 (640×480) thermal monocular is a professional thermal imaging device equipped with a 35 mm objective lens, designed for long-range observation, search and rescue operations, perimeter security, and tactical applications. It features a high-sensitivity 640×480 VOx sensor with a 12 µm pixel pitch and a 50 Hz refresh rate, providing stable and detailed imagery without stutter when observing moving targets, while the fast F/1.0 lens ensures effective performance in challenging weather conditions.
🫡 We are a team of veterans
We are a team of veterans who evaluate thermal imaging equipment based on real-world use: detection range, image stability, reliability, and field ergonomics. Guide TrackIR Pro 35 is a professional-grade tool designed for extended operation and confident task execution in environments where consistent performance is critical.
⚙️ Specifications
| Parameter | Value |
|---|---|
| Device type | Thermal monocular |
| Sensor | VOx 640×480 |
| Pixel pitch | 12 µm |
| Refresh rate | 50 Hz |
| NETD | <50 mK |
| Objective lens | 35 mm F/1.0 |
| Optical magnification | 3.3× |
| Maximum magnification | 13.8× |
| Display | 1280×960, LCOS |
| Rangefinder | Stadiametric |
| Human detection range | up to 2800 m |
| Mount interface | Picatinny / Weaver |
| Interfaces | Wi-Fi |
| Power source | 18650 battery |
| Battery capacity | 6000 mAh |
| Operating time | up to 5 hours |
| Protection rating | IP66 |
| Dimensions | 214×65×71 mm |
| Weight | 560 g |
💬 Comment
Guide TrackIR Pro 35 is optimized for long-range thermal observation. The 640×480 sensor combined with a 35 mm lens provides improved target assessment and situational awareness compared to lower-resolution devices. It is well suited for prolonged use where image stability and sensitivity are essential.
🎯 Who it is for
Primarily for military users requiring long-range surveillance and sector control.
For security, border, and law enforcement units where detection range and equipment durability are critical.
For hunters operating in open terrain who need confident long-distance target detection.
For search and rescue teams working over large areas and in demanding environmental conditions.
