📝 Thermal Imager IRay (INFIRAY) Affo AL09 (256×192)

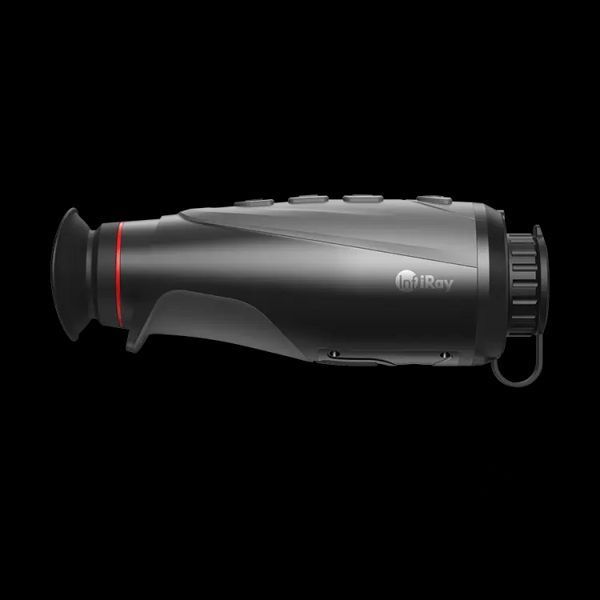

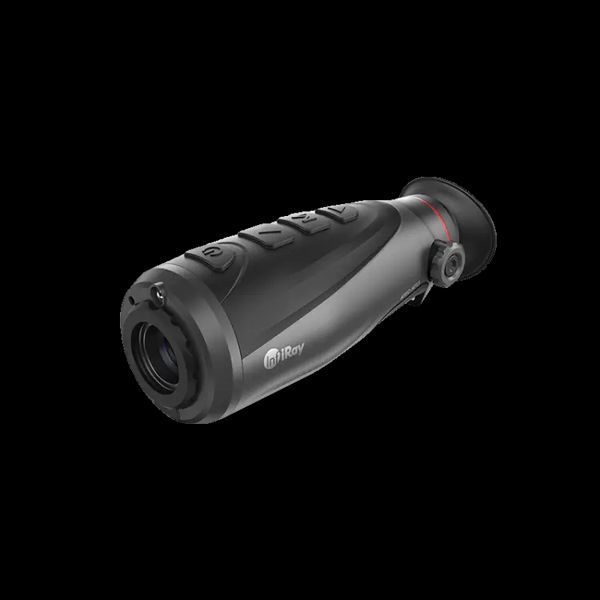

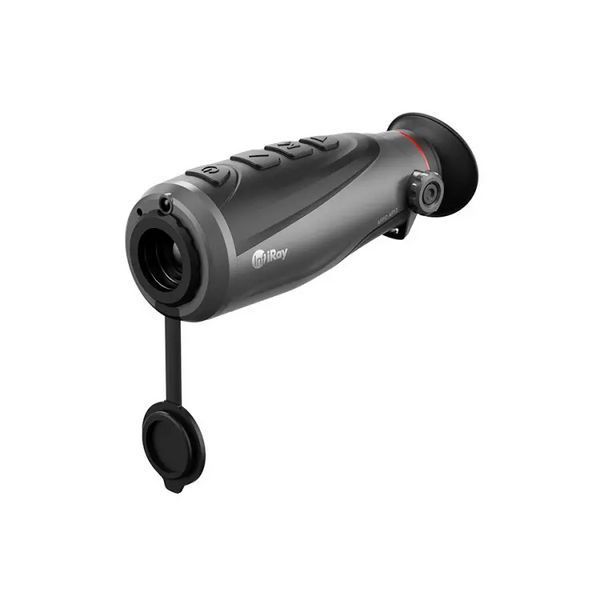

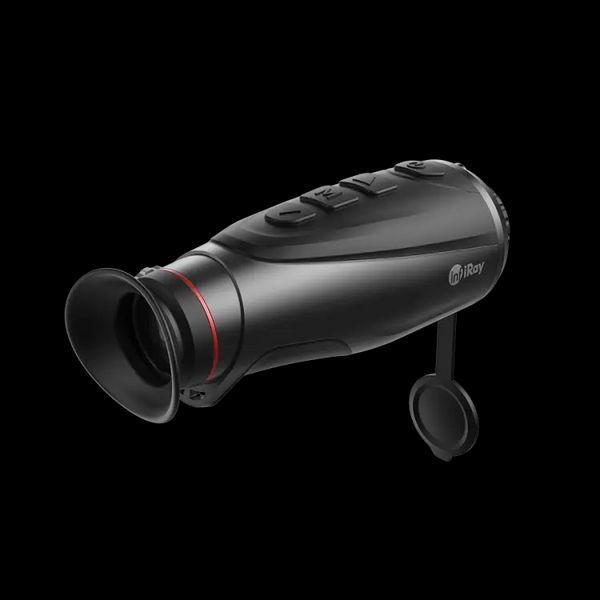

Thermal Imager IRay (INFIRAY) Affo AL09 (256×192) is a compact thermal imaging monocular designed for short and medium-range observation, equipped with a 256×192 VOx sensor with a 12 µm pixel pitch and NETD ≤40 mK sensitivity. The device is optimized for detection of thermal targets up to 460 meters and stable operation during night surveillance, patrol missions, and perimeter monitoring in low-visibility environments.
The germanium F9/f1.0 objective lens provides a wide 19.4° × 12.2° field of view for rapid area scanning, while the OLED display with a resolution of 640×400 delivers a high-contrast and detailed thermal image. The built-in video recorder, support for microSD up to 32 GB, Picture-in-Picture mode, and hot-spot tracking improve observation efficiency, while the stadiametric rangefinder with three preset profiles allows approximate distance estimation to detected targets.
🫡 We are a team of veterans
We use compact thermal imagers of this class for close-sector control, position security, and mobile night observation. Thermal Imager IRay (INFIRAY) Affo AL09 (256×192) proves effective due to its wide field of view, low weight, and long battery life, allowing use during patrol, perimeter surveillance, and short-range operational tasks without overloading field gear.
⚙️ Specifications
| Parameter | Value |
|---|---|
| Device type | Thermal imaging monocular |
| Sensor resolution | 256×192 |
| Microbolometer type | VOx |
| Pixel pitch | 12 µm |
| Sensitivity (NETD) | ≤40 mK |
| Refresh rate | 25 Hz |
| Objective lens diameter | 9 mm |
| Detection range | up to 460 m |
| Field of view | 19.4° × 12.2° |
| Display | OLED 640×400 |
| Magnification | 1.3× (digital 1× / 2× / 4×) |
| Memory | microSD up to 32 GB |
| Video recording | Yes |
| Rangefinder | Stadiametric (3 profiles) |
| Interfaces | USB Type-C, microHDMI |
| Power supply | Built-in Li-ion battery |
| Operating time | up to 570 min (≈9.5 h) |
| Protection class | IP67 |
| Operating temperature | −20 °C … +55 °C |
| Dimensions | 160×62×62 mm |
| Weight | 340 g |
💬 Comment / comments
The Affo AL09 model belongs to compact thermal imagers intended for short-range observation tasks. The 256×192 sensor with a 12 µm pixel pitch provides sufficient detail for detecting personnel, animals, and vehicles at distances up to 0.46 km. The wide field of view makes the device effective for patrol operations and rapid area scanning, while Picture-in-Picture and hot-spot tracking features improve target detection and tracking accuracy. The rugged IP67 housing, long battery life, and simple controls allow reliable use in field conditions without complex preparation.
🎯 For whom it is suitable
Military personnel, reconnaissance units, and surveillance operators, who require a compact thermal imager for close-sector control, position security, and detection of personnel movement at short distances during night operations.
Security and law enforcement units, performing territory patrol, perimeter monitoring, and facility observation in low-visibility and challenging weather conditions.
Rescue services and search teams, who need a lightweight thermal imaging monocular for locating people in darkness, forested environments, or complex terrain.
Professional civilian users — hunters, instructors, and observation operators, for whom compact size, wide field of view, video recording capability, stadiametric rangefinding, and stable performance during extended field deployments are essential.
