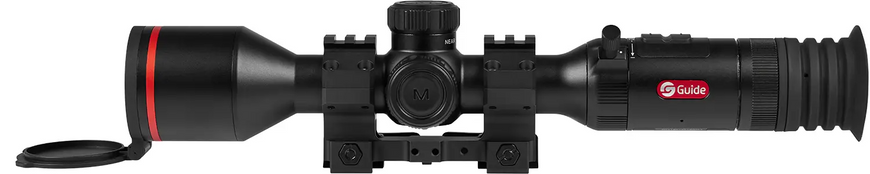

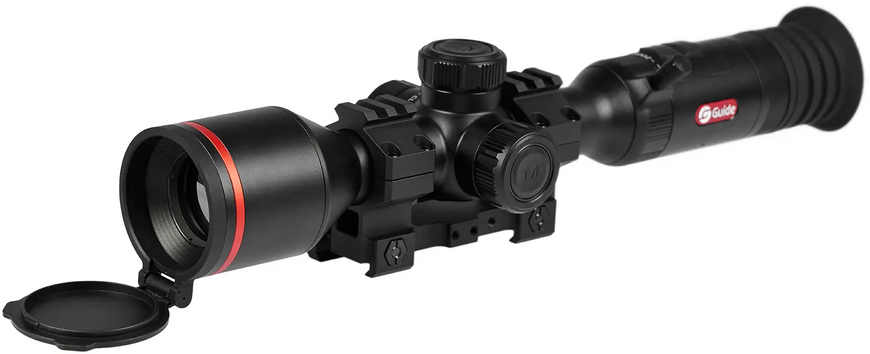

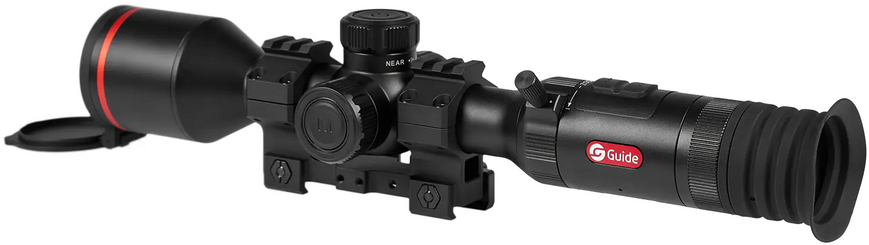

The GUIDE TU650 3.0 Thermal Imaging Scope is a high-tech optical device built around a 640×512 pixel sensor, designed for observation and precise target engagement at medium and long ranges. Constructed in a traditional scope body housing for standard 30mm rings, it mounts seamlessly onto various firearm platforms without requiring specialized adapters.

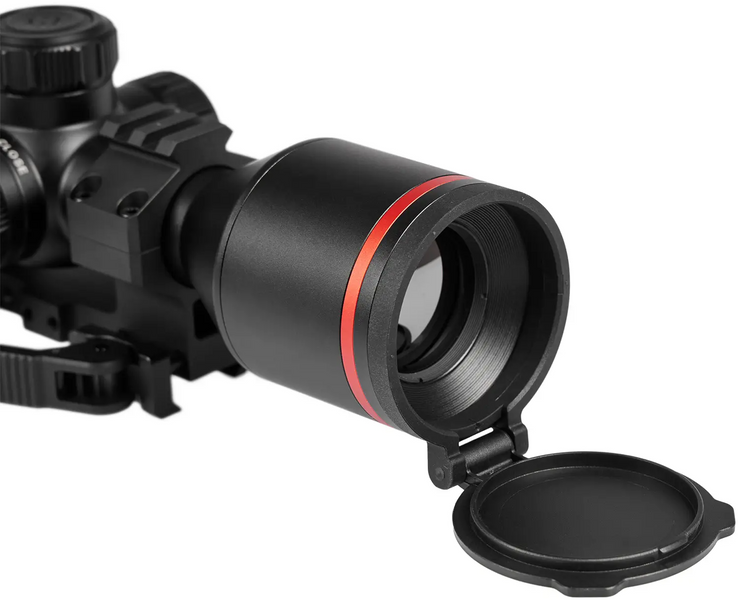

Combining a powerful 50mm objective lens with exceptional thermal sensitivity (NETD ≤20 mK), the scope delivers superior image clarity even under severe environmental conditions like heavy fog, rainfall, or dense smoke. With an optical magnification range from 3.9x to 31.2x, the device ensures confident target identification at extended ranges and significantly improves night-time accuracy.
Technical Specifications
| Parameter | Value |
| Model | GUIDE TU650 3.0 |
| Sensor Resolution | 640×512 pixels |
| Pixel Pitch | 12 µm |
| Spectral Range | 8–14 µm |
| Thermal Sensitivity (NETD) | ≤ 20 mK |
| Objective Lens | 50 mm, F1.0 |
| Optical Magnification | 3.9x – 31.2x |
| Digital Zoom | 1x – 8x (continuous) |
| Field of View (FOV) | 8.8° × 7.0° |
| Display | AMOLED 1024×768 pixels |
| Human Detection Range | Up to 2000 m |
| Power Supply | Internal battery + removable 18650 cell |
| Operating Time | Up to 10 hours |
| Mount Type | Standard 30 mm rings |
| Ingress Protection | IP67 |
| Operating Temperature Range | −30°C to +50°C |
| Weight | approx. 950 g |
Commentary / Comments
The core advantage of the GUIDE TU650 3.0 lies in its uncooled thermal detector featuring NETD ≤20 mK. This enables the scope to capture minimal temperature variances and output a sharp, high-contrast thermal image during heavy fog, precipitation, or high humidity conditions where standard sensors experience thermal wash-out.
The classic 30mm main-tube design allows shooters to select mounting rings of any height to align with specific firearm ergonomics. The dual-power system enables hot-swapping the external 18650 battery in the field without powering down the optic, preserving uninterrupted observation.
Target Audience / Suitable For
Professional snipers and designated marksmen operating at medium-to-long ranges in darkness receive a premium optical system featuring 640×512 resolution and scaling up to 31.2x magnification. The ultra-sensitive detector facilitates target recognition through dense camouflage up to 2000 meters. Standard 30mm ring mounting allows effortless installation onto diverse rifle setups. The IP67 ruggedized housing withstands extreme weather conditions and high recoil impulses.
Reconnaissance unit personnel and surveillance teams conducting round-the-clock sector monitoring can utilize this thermal scope as a primary surveillance system featuring photo and video capture capabilities. Powered by a hybrid battery setup, it guarantees up to 10 hours of continuous field operation.
Marksmanship instructors and electro-optics specialists testing and integrating modern night vision solutions receive a precise, high-definition instrument capable of maintaining electrical zero and thermal stability under heavy recoil.
