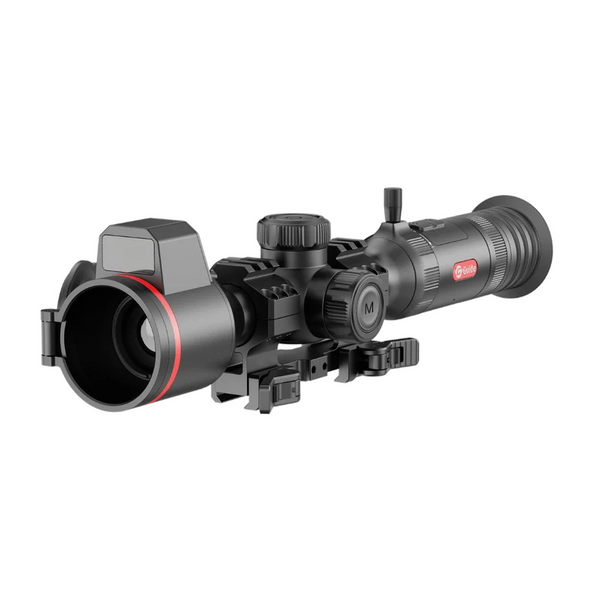

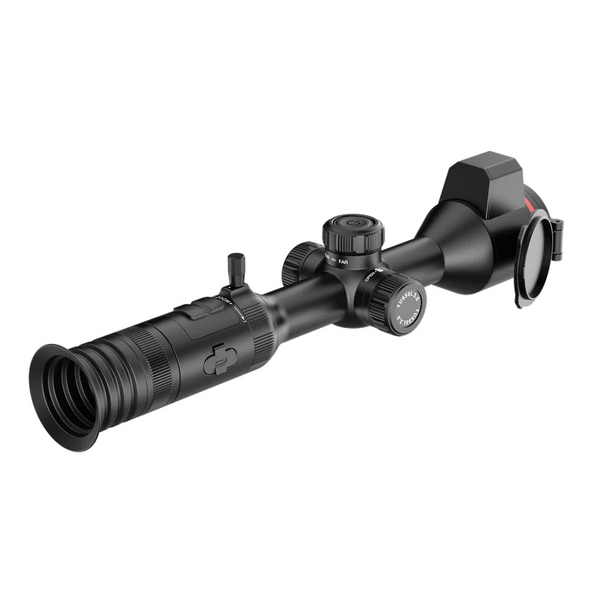

The GUIDE TU635L 3.0 35mm 640x512px 3-24x thermal imaging sight is an advanced electro-optical device designed for round-the-clock observation and precision targeting in all weather conditions. Built on a highly sensitive 640×512 pixel thermal sensor, the unit features an integrated laser rangefinder capable of measuring target distances up to 1000 meters.
Combining a 35mm F1.0 objective lens with 3–24x optical magnification and a high-contrast AMOLED display, it delivers detailed thermal images through tree lines, fog, rain, or dense smoke. The traditional 30mm tube design simplifies mounting onto various weapon platforms using standard scope rings, eliminating the need for specialized adapters.
Technical Specifications
| Parameter | Value |
| Model | GUIDE TU635L 3.0 35mm 640x512px 3-24x |
| Sensor Resolution | 640×512 pixels |
| Pixel Pitch | 12 µm |
| Thermal Sensitivity (NETD) | ≤ 20 mK |
| Objective Lens | 35 mm, F1.0 |
| Optical Magnification | 3x – 24x |
| Display | AMOLED 1024×768 |
| Laser Rangefinder | Built-in, measuring range up to 1000 m |
| Human Detection Range | Up to 1800 m |
| Tube Diameter | 30 mm (standard rings) |
| Ingress Protection | IP67 |
| Battery Life | Up to 10 hours (dual battery system) |
| Weight | approx. 980 g |
Commentary / Comments
The core advantage of the GUIDE TU635L 3.0 35mm 640x512px 3-24x stems from combining a high-resolution 640×512 sensor (NETD ≤20 mK) with an integrated laser rangefinder. This configuration enables operators to detect thermal signatures at ranges up to 1800 meters and immediately obtain accurate distance data for elevation compensation without switching between separate observation devices.
The dual-battery system, utilizing both internal and removable batteries, offers up to 10 hours of continuous operation, with hot-swap capabilities ensuring uninterrupted power during long shifts. Housed in a durable aluminum alloy body rated to IP67 standards, the sight resists severe recoil forces from heavy calibers while staying fully protected against dust, mud, and water ingress in harsh operating environments.
Target Audience / Suitable For
Snipers and designated marksmen engaging targets at medium to long ranges receive a comprehensive thermal solution featuring target identification, digital magnification, and precise distance calculation within a single housing. The 30mm tube design fits directly into standard mounting systems, simplifying integration onto existing rifles. The dual-battery configuration guarantees extended operational endurance throughout night operations without power interruption.
Observation post operators and reconnaissance teams conducting sector surveillance under limited visibility conditions can deploy this unit for continuous perimeter monitoring. The low NETD rating allows detection of concealed targets behind light foliage or camouflage netting, while the IP67-rated housing ensures consistent operation in heavy rain or freezing conditions.
Marksmanship instructors and electro-optical technicians conducting night-vision training or evaluating thermal targeting hardware receive a rugged, repeatable system with precise rangefinder feedback. The device offers clear performance characteristics suitable for rigorous daily training cycles and operational field testing.
