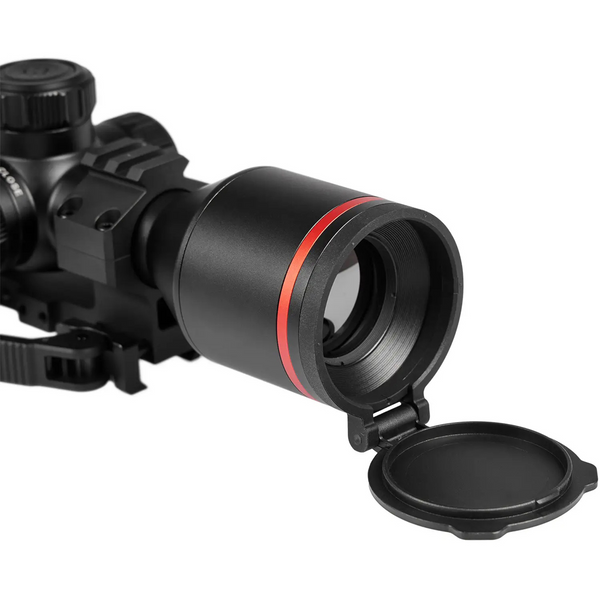

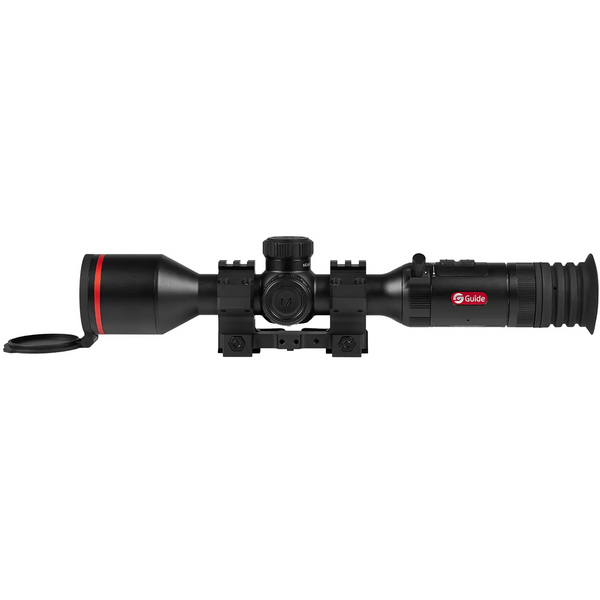

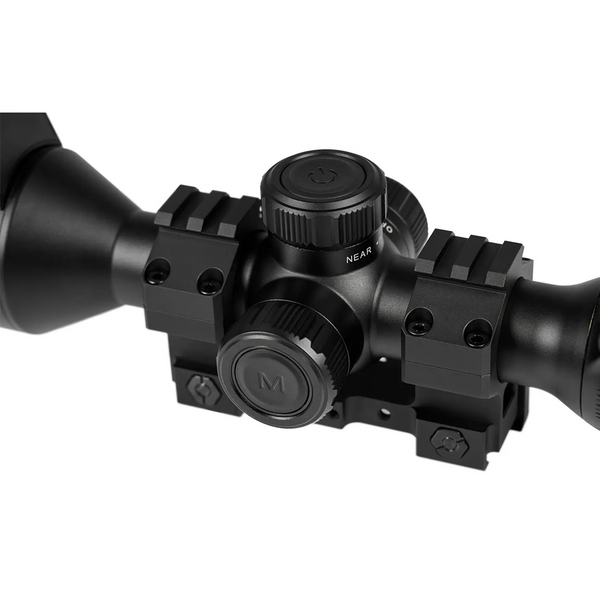

The GUIDE TU635 3.0 35mm 640x512px 3-24x thermal imaging riflescope is an advanced electro-optical device housed in a traditional 30mm tube chassis, engineered for target acquisition, observation, and precision engagement in zero-light environments, dense fog, smoke, or heavy foliage. Built on a high-sensitivity uncooled thermal sensor featuring a 640×512 pixel resolution paired with a fast 35mm F1.0 objective lens, this optic delivers crisp target rendering and thermal contrast across medium to long ranges.
The housing design matches the profile of a standard daylight riflescope, enabling straightforward mounting onto weapon platforms using conventional 30mm rings or one-piece scope mounts without requiring specialized interface adapters. Combining a 3x optical magnification with up to 24x digital zoom facilitates reliable target tracking, while a high frame refresh rate guarantees smooth image delivery without motion blur, even during rapid target movement across the field of view.
Technical Specifications
| Parameter | Value |
| Model | GUIDE TU635 3.0 35mm 640x512px 3-24x |
| Sensor Type | Uncooled VOx Focal Plane Array |
| Sensor Resolution | 640×512 pixels |
| Pixel Pitch | 12 µm |
| Thermal Sensitivity (NETD) | ≤ 20 mK |
| Objective Lens | 35 mm, F1.0 |
| Optical Magnification | 3x |
| Digital Zoom | 1x–8x (total magnification up to 24x) |
| Field of View (FOV) | 12.5° × 10.0° |
| Display | AMOLED, 1024×768 pixels |
| Frame Rate | 50 Hz |
| Human Detection Range | up to 1400 m |
| Main Tube Diameter | 30 mm |
| Power Supply | Internal battery + removable external battery (Dual Battery System) |
| Operating Time | up to 10 hours |
| Ingress Protection | IP67 |
| Operating Temperature Range | −30°C to +50°C |
| Internal Storage | 128 GB |
| Interfaces | Wi-Fi, USB Type-C |
| Weight | approx. 950 g |
Commentary / Comments
The primary advantage of the GUIDE TU635 3.0 35mm 640x512px 3-24x lies in its ultra-sensitive NETD ≤ 20 mK thermal rating combined with the detailed 640×512 detector matrix. This allows the system to resolve minute temperature gradients between targets and background terrain, ensuring sharp target boundaries even during heavy rain, snowfall, or high relative humidity. The high-contrast 1024×768 AMOLED display provides deep black levels and rich visual rendering, preventing eye fatigue during prolonged observation shifts.
Constructed from high-strength aluminum alloy, the IP67-rated sealed housing easily withstands severe recoil impulses from large-caliber small arms. The dual-battery power architecture, incorporating both an internal cell and a hot-swappable external battery, provides up to 10 hours of continuous operational runtime without requiring system shutdown during power changes. Integrated Wi-Fi connectivity and 128 GB of onboard storage allow seamless recording and real-time streaming of mission footage for subsequent analysis.
Target Audience / Suitable For
Snipers, marksmen, and special operations units performing engagement and reconnaissance missions under adverse weather conditions and complete darkness receive a rugged optical instrument with a human detection range of up to 1400 meters. The high-resolution 640×512 core and NETD ≤ 20 mK rating allow precise target identification, distinguishing gear details and concealed thermal sources through camouflage netting or brush. Standard 30mm ring mounting compatibility ensures effortless mounting without altering established shooting ergonomics or cheek weld setups. The dual battery system guarantees continuous operation throughout extended night deployments without risk of unexpected power loss during critical observation windows.
Observation post personnel and reconnaissance teams conducting sustained sector oversight or locating enemy firing positions can leverage this optic for continuous medium- and long-range area surveillance. A wide field of view at the base 3x magnification allows efficient scanning of broad sectors, while smooth digital zooming up to 24x enables detailed target examination prior to engagement decisions. The integrated 128 GB memory and internal video recording enable operators to archive observation findings for post-mission intelligence debriefs. Environmental sealing rated to IP67 and an operating envelope of −30°C to +50°C ensure complete operational reliability in extreme seasonal environments.
Marksmanship instructors and optics testing specialists training personnel in night operations obtain a high-precision optic capable of streaming real-time video via Wi-Fi to external tablets or smartphones. This capability allows instructors to observe shooter reticle placement, correct engagement techniques, and evaluate performance during live-fire drills. Multiple selectable reticle patterns featuring dynamic scaling and customizable color palettes deliver maximum versatility across diverse ballistic profiles and weapon calibers.
