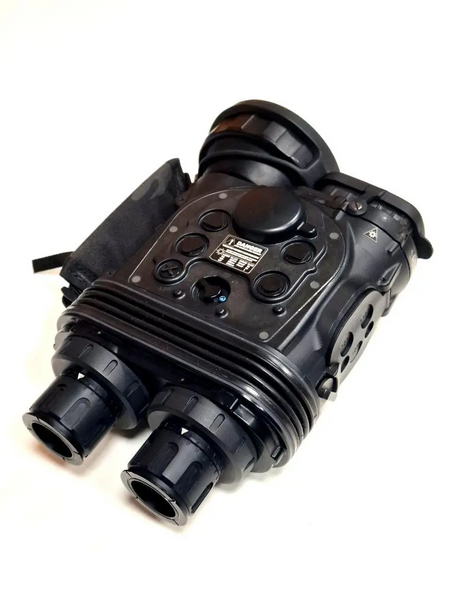

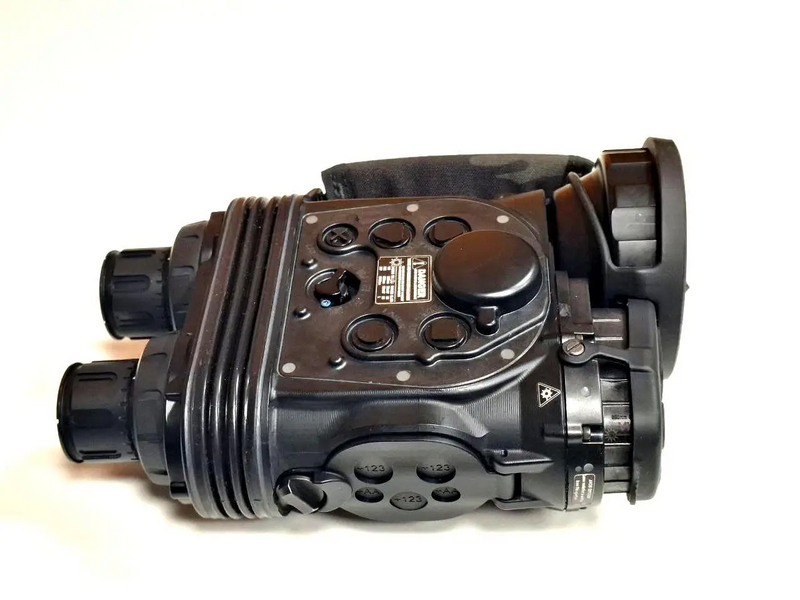

Thermal binocular Pixel on Target VooDoo-B Black Used

Thermal binocular Pixel on Target VooDoo-B Black Used is a professional uncooled thermal binocular for long duration observation, object identification, distance measurement and coordinate based work. The model combines a 640 × 480 thermal sensor, laser rangefinder, GNSS, digital magnetic compass, laser pointers and the ability to integrate with other optical systems from the VooDoo line.

Thermal binocular Pixel on Target VooDoo-B Black Used is designed for use in difficult conditions where clear thermal imaging, accurate distance measurement and fast acquisition of both operator and observed object coordinates are important. The device has interchangeable modular optics, supports handheld and tripod mounted operation, is equipped with a 60 Hz OLED display and supports digital magnification up to 8×.

We are a team of veterans

We work with professional optics and technical solutions used under increased load, long duration observation and field operation conditions. For us, it is important that the product description is practical rather than promotional, with clear specifications, real device capabilities and emphasis on applied use.

Before delivery to the client, the equipment is checked by key parameters: housing condition, thermal channel operation, display, controls, rangefinder, power supply, interfaces and included accessories. For used equipment, the actual condition, package contents and external appearance are clarified separately before ordering.

Technical specifications

Comment

Pixel on Target VooDoo-B belongs to the class of professional thermal binoculars where the main advantage is not only observation, but also integrated work with distance, coordinates and terrain orientation. The 640 × 480 sensor with 12 μm pixel pitch provides detailed thermal imaging, while the 60 Hz refresh rate makes observation more stable when objects are moving or when operating handheld.

The presence of a rangefinder, GNSS, digital compass and coordinate format support makes the device useful for tasks where it is necessary not only to see thermal contrast, but also to quickly determine distance and transmit the exact location of an object. The used condition of the device should be considered separately: before purchase, it is necessary to clarify the actual condition of the optics, housing, laser modules, display, battery compartment and included accessories.

Who it is suitable for

Professional users in the defense sector. VooDoo-B is suitable for units and specialists who need long duration thermal observation with the ability to determine distance and coordinates. The device is useful in situations where it is important to quickly obtain not only visual information, but also location data for the observed object. Thanks to GNSS, a digital compass and a laser rangefinder, the model can be used for coordinating group work in the field. The rugged housing, MIL-STD 810G protection and water resistance up to 3 m make it suitable for demanding operating conditions.

Observation operators and terrain reconnaissance specialists. For these users, stable imaging, comfortable two eye observation and the ability to work for long periods without excessive strain are important. VooDoo-B has ergonomic eyepiece adjustment and independent diopter adjustment, which helps adapt the device to a specific operator. Human detection range of up to 2950 m allows observation at a significant distance. Digital polarity modes help select the optimal display mode depending on background, weather and thermal contrast.

Perimeter and critical infrastructure security specialists. The device can be useful for monitoring large areas, energy facilities, industrial zones, warehouses, transport hubs and other sites where early movement detection is important. The thermal channel allows heat contrast objects to be detected in darkness, fog, smoke or limited visibility. The rangefinder helps estimate the distance to an object without additional equipment. Tripod mounting is convenient for a fixed or semi fixed observation post.

Search and rescue teams. VooDoo-B can be used to search for people at night, in open terrain, forest belts, near bodies of water or in difficult visibility conditions. The thermal sensor makes it possible to notice heat signatures faster when they are difficult to detect with conventional optics. GNSS and coordinate based operation help record the detection point more accurately and transmit it to other team members. The binocular format reduces eye fatigue during long observation compared with monocular solutions.

Instructors and technical specialists working with optical systems. This model is suitable for demonstrating the operation of modern thermal imaging systems, testing optical modes, checking rangefinding functions and analyzing integration with other VooDoo systems. USB, UART, Bluetooth and video output allow the device to be used in training, service or demonstration scenarios. AI and ML support provides the possibility of use in environments where extended data processing is required. For service use, it is important to separately check firmware condition, interfaces, memory and included software.
