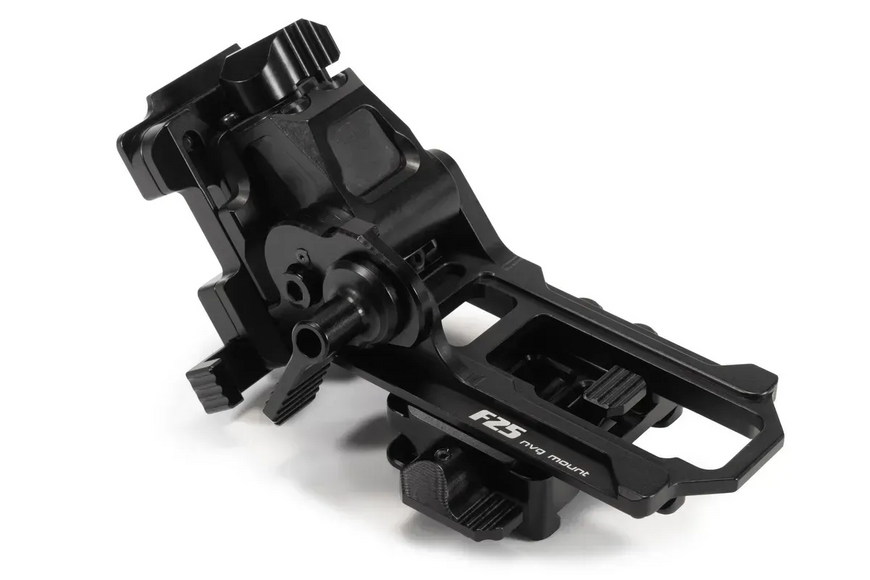

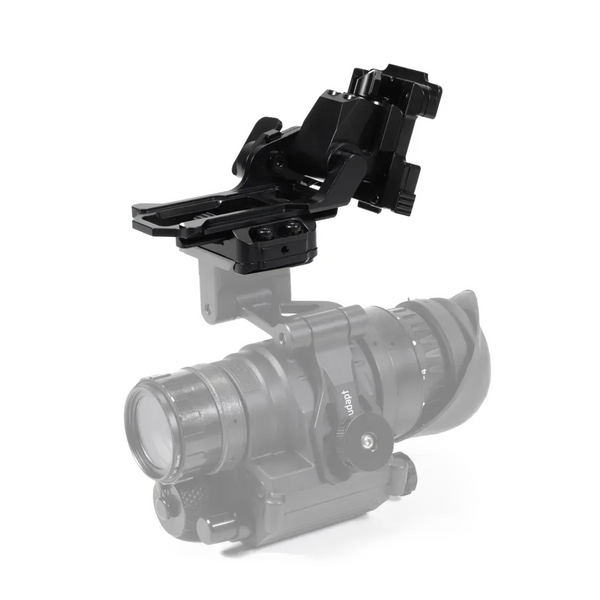

The UDAPT F25 mount attaches a night vision device to a tactical helmet. It installs in a standard STANAG 2902 shroud. The device connects through an adjustable dovetail interface. The mount weighs 156 g and is made from 7075 aluminum, TC4 titanium and stainless steel. It is designed for heavy-duty use, where a stable device position in front of the eye is critical.
The main goal of the design is to minimize play in every joint. The dovetail fit can be tightened to a specific NVG adapter, which takes up the gap between the mount and the device. Position is held by clamping levers. Height, eye relief and tilt angle can be adjusted precisely. The device is raised and lowered with a single hand movement, without pressing any buttons. In the stowed position the mount has a low profile, which reduces the risk of snagging. Under a hard impact, the break-away system releases the device, reducing load on the neck and the risk of damage to the NVG. This function can be quickly disabled when needed.
Key Advantages
- One-handed operation: the device is raised and lowered in a single movement, with no buttons.
- Design with minimized play in all joints, secured by clamping levers.
- Adjustable dovetail interface takes up the gap between the mount and the NVG adapter.
- Break-away reduces the risk of neck injury and device damage on impact. The function can be deactivated.
- Height, eye relief and tilt angle are adjustable.
- Low profile in the stowed position.
- Materials: 7075 aluminum, TC4 titanium, stainless steel. Weight: 156 g.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Helmet mount for night vision devices |
| Helmet interface | Shroud per STANAG 2902 specification |
| Device interface | Dovetail, adjustable |
| Compatible devices | AN/PVS-18, AN/PVS-31, Argus BNVD, AGM NVG-40, AGM NVG-50, other NVGs with a dovetail connector or adapter |
| Adjustments | Height, eye relief, tilt angle |
| Break-away | Yes, can be deactivated |
| Operation | One-handed raise/lower, no buttons |
| Materials | Anodized 7075 aluminum, TC4 titanium, stainless steel |
| Dimensions | 110 × 60 × 65 mm |
| Weight | 156 g |
| Color | Black |
| Manufacturer SKU | MOUNT-F25 |
| Country of manufacture | Ukraine |
Package Contents
- UDAPT F25 mount
- Hex key
- User manual
Application
Suitable for mounting monocular, binocular and panoramic NVGs with a dovetail interface on tactical helmets with a STANAG 2902 shroud. Used for night operations, patrols, surveillance and training, and as a replacement for stock mounts that have play.
