Control transmitter Aeronetix LR1121 TX 1700-2770 MHz 1-2W buy at Astreiatactical

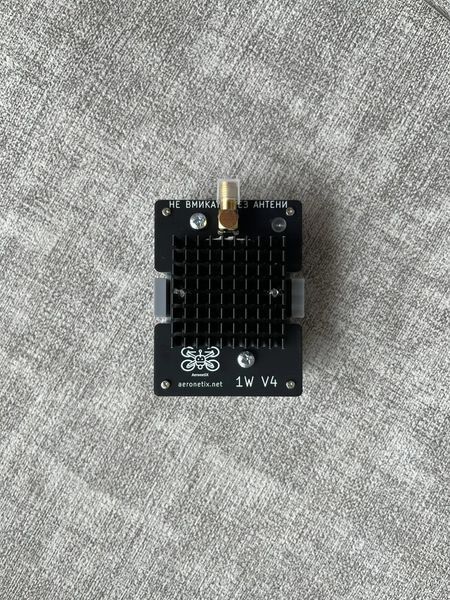

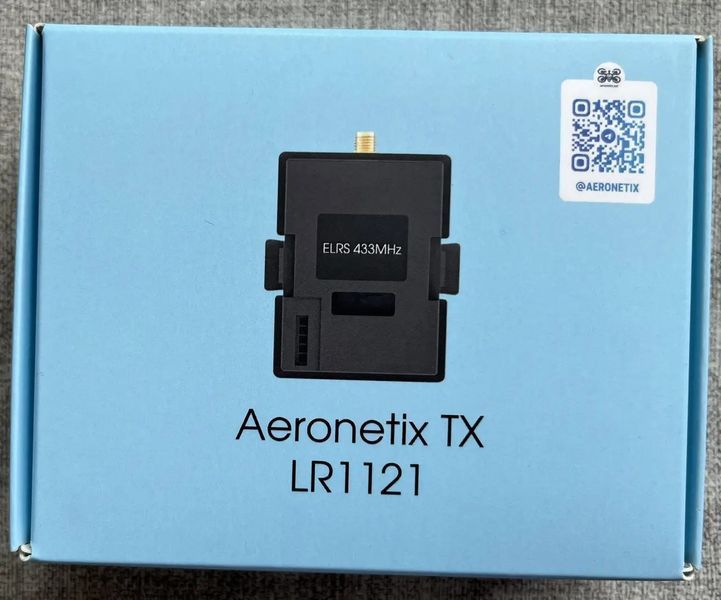

📝 Control Transmitter Aeronetix LR1121 TX 1700–2770 MHz 1–2W

The Aeronetix LR1121 TX 1700–2770 MHz 1–2W control transmitter is designed for FPV drone and UAV control systems operating in the 1.7–2.7 GHz frequency range. The transmitter is built on the LR1121 modulator with a built-in power amplifier rated at 1–2W output. It supports MilELRS and ExpressLRS firmware and can be used in control systems, repeaters or ground stations. Suitable for operation in 1.8 GHz, 2.1 GHz and 2.4 GHz bands.

🫡 We are a team of veterans

Transmitters operating in the 1.7–2.7 GHz range are often used where SubGHz bands are congested or affected by interference. These systems use smaller antennas and are convenient for compact repeater setups. The 1–2W power output is sufficient for stable communication over medium and long distances when directional antennas are used. Well suited for mobile ground stations.

⚙️ Specifications

Parameter	Value
Product type	Control transmitter
Module	LR1121
Operating frequency	1700–2770 MHz

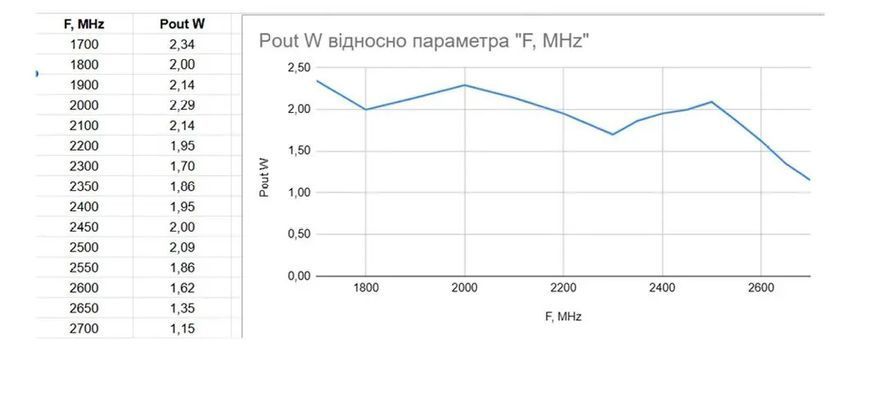

Output power	1–2W
Firmware support	MilELRS, ExpressLRS
MilELRS target	Aeronetix_ESP32_LR1121_1W_V3_TX
Application	UAV / FPV control
Usage	Ground stations, repeaters
System type	ELRS

💬 Comment / comments

The transmitter operates in the 1.7–2.7 GHz range, allowing it to be used as an alternative to SubGHz systems. The 1–2W output provides stable control link when directional antennas or repeaters are used. Supports MilELRS and ExpressLRS firmware. Can be used in ground stations or repeater systems.

🎯 Who it is suitable for

Military units and UAV operators. Used for drone control systems in the 1.7–2.7 GHz band. Suitable for ground stations or repeaters when SubGHz bands are congested or affected by interference. Provides stable control link with proper antenna setup.

FPV drone operators. Suitable for control systems operating in the 2.4 GHz band or other frequencies within 1.7–2.7 GHz. Can be used in long-range systems with directional antennas. The 1–2W output power is sufficient for stable communication.

UAV engineers and drone builders. Used for building control systems, repeaters and ground stations. Suitable for alternative frequency bands. Can be integrated into custom communication systems.

Radio amateurs and RF specialists. Can be used in experimental radio and telemetry systems. Supports multiple frequencies within the 1.7–2.7 GHz range. Suitable for building custom control or radio link systems.

Supported firmware:

MilELRS: Aeronetix_ESP32_LR1121_1W_V3_TX
ELRS: https://github.com/mishadesh/ExpressLRS/tree/aeronetix_lr1121
