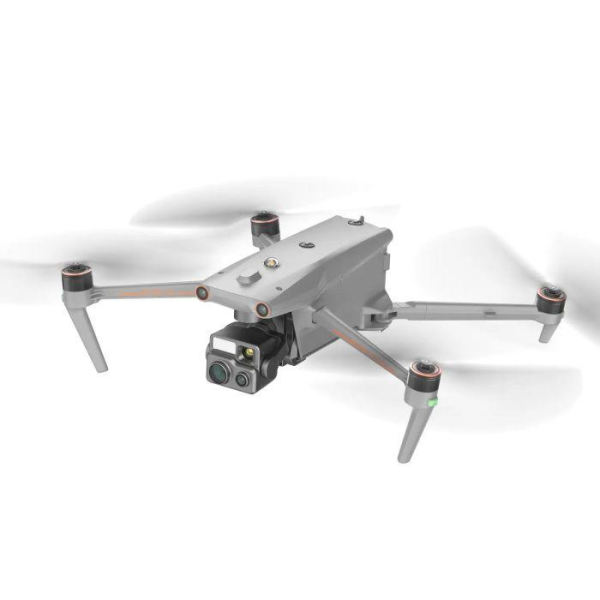

Quadcopter Autel EVO Max 4T XE OpenBox represents a professional reconnaissance solution equipped with a multi-sensor optical payload containing a thermal imager, a laser rangefinder, and a powerful optical zoom. The aircraft is supplied in an unboxed factory packaging condition, allowing users to acquire a fully functional reconnaissance platform with pre-flight inspected components at a more accessible cost.
The airframe structure is engineered for long-endurance patrolling and surveillance operations in complete darkness, dense cloud cover, or heavy interference environments. Quadcopter Autel EVO Max 4T XE OpenBox supports AI-driven object recognition, autonomous flight under GNSS-denied conditions, and rapid deployment in field environments.
🫡 We Are a Team of Veterans
We evaluate Autel EVO Max 4T XE OpenBox as a pragmatic choice for operational units requiring full-spectrum aerial reconnaissance capabilities without unnecessary budget expenditure. The XE model delivers the complete feature set of the Max 4T series, featuring a 640×512 thermal resolution imager and a laser rangefinder with an operational distance of up to 1200 meters. The OpenBox condition ensures preserved hardware service life, verified electronic systems, and immediate readiness for flight straight out of the case.
⚙️ Technical Specifications
| Parameter | Value |
| Model | Autel EVO Max 4T XE OpenBox |
| Thermal Sensor | Uncooled VOx, 640×512, 30 Hz |
| Optical Zoom | 10x optical, up to 160x hybrid |
| Wide Camera Photo | 50 MP, 1/1.28-inch CMOS sensor |
| Telephoto Camera | 48 MP, 1/2-inch CMOS sensor |
| Laser Rangefinder | Range from 5 to 1200 meters |
| Max Flight Time | Up to 42 minutes |
| Ingress Protection | IP43 |
| Operating Frequencies | 2.4 GHz, 5.2 GHz, 5.8 GHz, 900 MHz |
| Transmission Range | Up to 20 km |
| Weight | 1600 grams |
| Condition | OpenBox (unboxed, factory inspected) |
Commentary / Comments
The primary advantage of Autel EVO Max 4T XE OpenBox lies in its integrated optical payload, which combines four essential data collection tools into a single gimbal assembly. The thermal camera identifies camouflaged hardware and personnel based on thermal signatures, while the laser rangefinder instantly calculates precise target coordinates. Autonomous navigation support under GNSS jamming conditions ensures mission completion even under complete loss of satellite signals.
The reinforced airframe with IP43 protection preserves operational readiness during moderate rain or snowfall. An extended flight time of up to 42 minutes allows coverage of expansive areas in a single sortie, reducing battery swap frequency. Choosing the OpenBox variant provides a mission-ready unmanned aerial system equipped with thoroughly tested electronics and updated firmware.
🎯 Target Audience / Suitable For
Military Unmanned Aerial Vehicle Operators conducting round-the-clock reconnaissance and target acquisition along active frontlines obtain a reliable optical platform capable of generating target coordinates via an integrated laser rangefinder. High-resolution thermal imaging enables continuous monitoring of enemy movements at night or through heavy smoke cover. The ability of the aircraft to operate in navigation-jammed environments ensures safe return upon mission completion. The OpenBox format provides an opportunity to expand unit fleet capacity while optimizing material expenditures.
Search and Rescue Units deployed to locate missing individuals in complex terrain can leverage the multi-sensor payload to scan large forested or mountainous regions efficiently. The combination of thermal channels and high-magnification optical zoom accelerates target discovery regardless of ambient lighting conditions. The laser rangefinder assists ground search parties by providing exact geolocation data for identified subjects. Extended battery endurance allows uninterrupted search missions with minimal operational downtime.
Critical Infrastructure Inspection Specialists monitoring power lines, industrial facilities, and pipeline networks receive a precise diagnostic tool for detecting thermal leaks or structural anomalies. High-definition optical sensors enable close inspection of minute structural defects from safe standoff distances. Automated 3D mapping features and AI object recognition streamline post-flight data processing workflows. Acquiring an OpenBox package serves as a practical solution for organizations seeking to optimize hardware procurement budgets.
