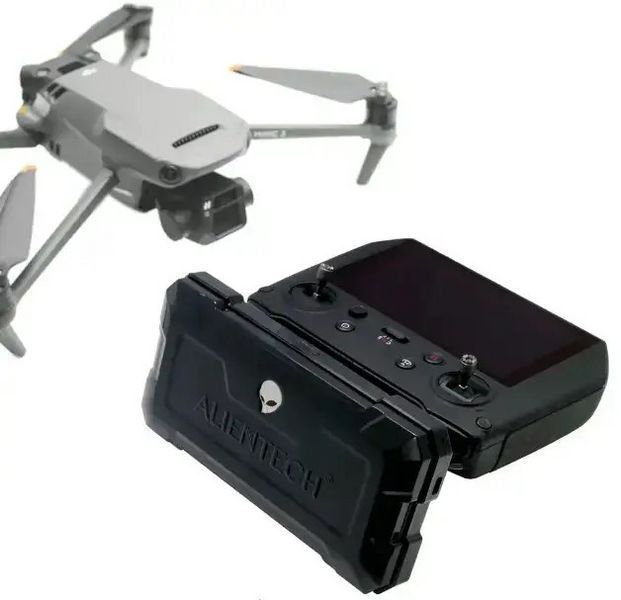

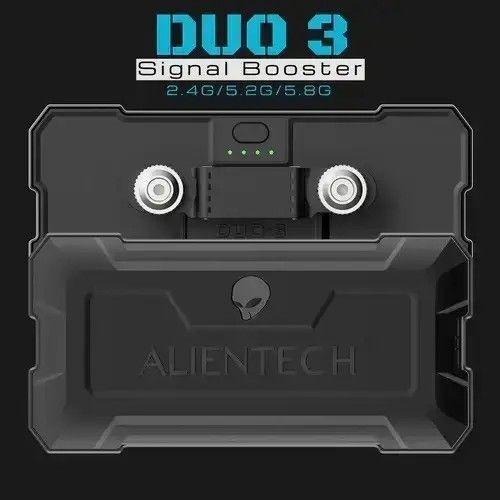

DUO 3 Signal Booster is a portable tri-band signal booster designed for professional use in UAV operations and wireless communications. It operates simultaneously on 2.4G, 5.2G, and 5.8G bands, supports IEEE 802.11a/b/g/n/ac standards, DSSS and OFDM modulation, and TDD technology for rapid transmit/receive switching.
DUO 3 automatically manages frequency and channel selection, minimizes interference, enhances link stability, significantly extends control range, supports OcuSync and Lightbridge, and complies with FCC and CE requirements.
⚠️ Before use, ensure compliance with local regulations regarding radio-frequency equipment.
🫡 We are a team of veterans
We select and test equipment in real operational conditions. DUO 3 has demonstrated stable performance across three bands, low transmission latency, reliability in harsh environments, and sufficient autonomy for extended missions. In active EW environments, results will always depend on terrain, interference conditions, and the drone’s own hardware limitations.
⚙️ Technical specifications
| Parameter | Value |
|---|---|
| Model | DUO-2458DSB |
| Operating bands | 2.4G / 5.2G / 5.8G |
| Frequency range | 2400–2485 MHz; 5150–5850 MHz |
| Operating voltage | 6–9 V |
| Antenna gain | 2.4G > 13 dBi ±1 / 5G > 15 dBi ±1 |
| Beamwidth (H) | 65–84° |
| Beamwidth (V) | 63–75° |
| Receive gain (2.4G) | 12 dB ±1 |
| Receive gain (5.2/5.8G) | 15 dB ±1 |
| Transmit gain | 15 dB ±1 |
| Input power range | 10–25 dBm |
| EVM | 3% @ 28 dBm (802.11ac, MIMO OFDM 64QAM, BW 80 MHz) |
| Current consumption | 435 mA @ POUT 28 dBm, 9 V |
| Noise figure | ≤ 2.5 dB |
| Transmission delay | ≤ 1 µs |
| Operating temperature | –20°C … +80°C |
| Battery | 3.7 V, 3000 mAh |
💬 Comments
DUO 3 is designed for professional operators who require stable connectivity, low latency, and multi-band versatility; it performs reliably in interference-heavy environments, supports fast channel switching, and substantially extends drone operating range without degrading video quality.
🎯 Who it is for
For military and tactical units requiring reliable long-range communication
For DJI, Autel, and FPV operators working in urban, mountainous, or complex terrain
For teams operating in high-interference environments
For pilots who prioritize autonomy, mobility, and fast system response
For OcuSync or Lightbridge users who need minimal latency
