The Avenger signal boosting kit for DJI Mavic 3, 3T, Matrice, and Autel drones (Avenger antenna + 20 m cable + tripod) is a professional solution for stable long-range communication between the controller and the drone.
The Avenger Booster 2.4G/5.8G antenna provides a high output power of 10W (40 dBm) ×2 and a transmission gain of 18–20 dB, ensuring reliable signal performance even in environments with significant interference. Antenna gain is 15 dBi (±1) for 2.4G and 18 dBi (±1) for 5.8G, while operating angles of 65° horizontally and 20° vertically deliver broad coverage and consistent connectivity in various operational scenarios.
A mobile design, IPX68 waterproof housing, and the included 20-meter cable allow the antenna to be positioned away from the operator, reducing interference and increasing safety. Avenger is compatible with DJI Mavic, Phantom, Inspire, Matrice, Autel EVO, Parrot Anafi, and most modern drone platforms.

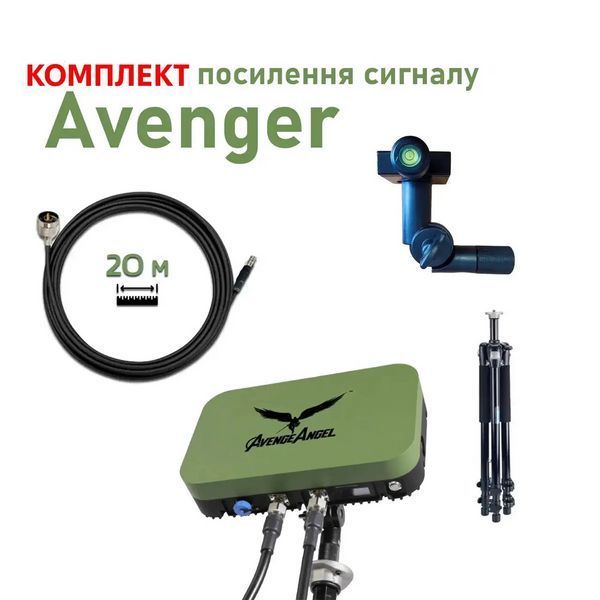

Package contents:
-
Dual-band Avenger Booster signal amplifier.
-
N-Type to QMA cable, 20 meters.
-

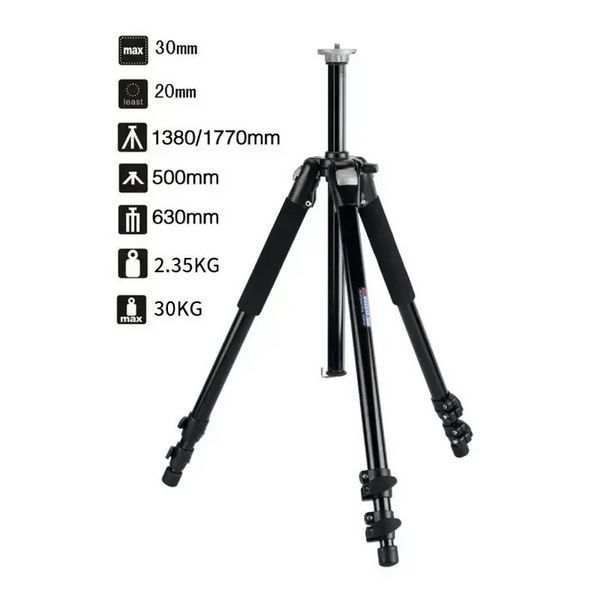

Tripod mount for antenna (1.38–1.77 m, up to 30 kg load).
-
Antenna mounting bracket.
🎖️ We are a team of veterans
We select and test equipment in real field conditions. Avenger Booster demonstrates stable performance over long distances, resistance to moisture, and sufficient autonomy for extended missions. In areas with active electronic warfare, results will always depend on environmental conditions, terrain, and the hardware limitations of the drone itself.
📊 Technical specifications
| Parameter | Value |
|---|---|
| Output power | 10 W (40 dBm) ×2 |
| Transmission gain | 18–20 dB |
| Noise figure | 52.5 dB |
| Antenna gain | 2.4G — 15 dBi (±1) / 5.8G — 18 dBi (±1) |
| Operating angles | 65° (horizontal) / 20° (vertical) |
| Supported voltages | 6–12 V |
| Battery | 7.4 V, 5000 mAh |
| Connector type | N-K Female |
💬 Comments
Avenger Booster is designed for users who prioritize signal stability, remote antenna placement, and dual-band performance without loss of data transmission speed. The included 20-meter cables enable optimal antenna positioning, reduced interference, and improved operator safety.
🎯 Suitable for
Military and tactical units requiring a reliable remote signal booster.
DJI and Autel operators working in urban, mountainous, or complex terrain.
Pilots who need to position the antenna away from the controller.
Long autonomous missions.
Operations in humid or harsh weather conditions.
