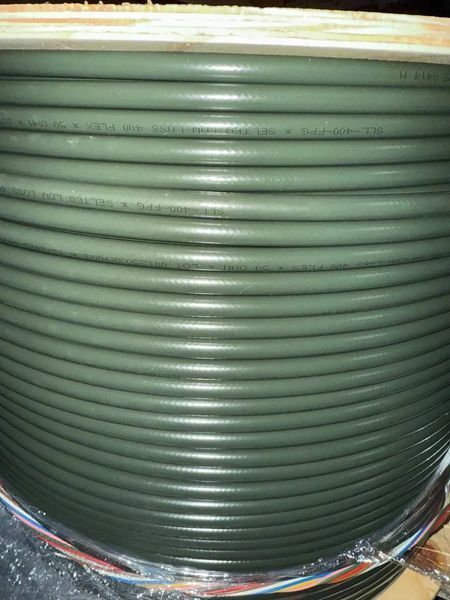

The SLL-400-FPG coaxial cable, 2 pcs × 40 m, equipped with N-type male ↔ N-type male connectors, is a professional solution for telecommunications, antenna, and RF systems where low signal loss, stable electrical characteristics, and long-term reliability are required. The cable is designed for efficient data transmission at frequencies up to 6 GHz and above, featuring multi-layer shielding and a UV-resistant PVC outer jacket, making it suitable for both indoor and outdoor installations.
🫡 We are a team of veterans
We are a team of veterans with hands-on experience operating communication systems in real field and stationary conditions. SLL-400-FPG class cables are used in applications where instability, random signal losses, or long-term parameter degradation are unacceptable. We select solutions that demonstrate predictable and repeatable performance over long cable runs and in harsh environments.
⚙️ Technical specifications
| Parameter | Value |
|---|---|
| Cable type | SLL-400-FPG |
| Quantity | 2 pcs |
| Length | 40 m each |
| Connector type | N-type male ↔ N-type male |
| Characteristic impedance | 50 ±3 Ohm |
| Capacitance per meter | 78 ±2 pF/m |
| Velocity factor | 83% |
| Shielding effectiveness | over 105 dB (100–2000 MHz) |
| Operating temperature | –40°C … +60°C |
| Minimum bending radius | 40 mm |
| Repeated bending radius | 80 mm |
| Outer diameter | 10.3 mm |
| Construction | stranded copper conductor 2.9 mm, triple-layer foamed polyethylene 7.3 mm, copper foil + 144-wire braid, UV-resistant PVC jacket |
| Compatibility | RG8/U, LMR-400, RG-213, Low Loss 400 |
Signal attenuation per 100 m:
144 MHz — 4.5 dB
430 MHz — 8.1 dB
800 MHz — 11.2 dB
1000 MHz — 12.7 dB
1296 MHz — 14.6 dB
2400 MHz — 20.6 dB
3000 MHz — 23.4 dB
4000 MHz — 27.7 dB
5000 MHz — 31.6 dB
6000 MHz — 35.4 dB
💬 Comment / comments
A 40-meter length is optimal for fixed antenna installations, base stations, repeaters, and remote connection points where a balance between cable length and acceptable signal loss is required. The SLL-400-FPG cable offers stable electrical parameters, excellent shielding performance, and strong mechanical durability. Hermetically sealed N-type connectors ensure reliable contact and reduce the risk of degradation during outdoor installation. Other connector types can be provided on request.
🎯 Who it is suitable for
Military communication units
Civil telecommunications operators
RF and antenna system engineers
Industrial and outdoor installations
