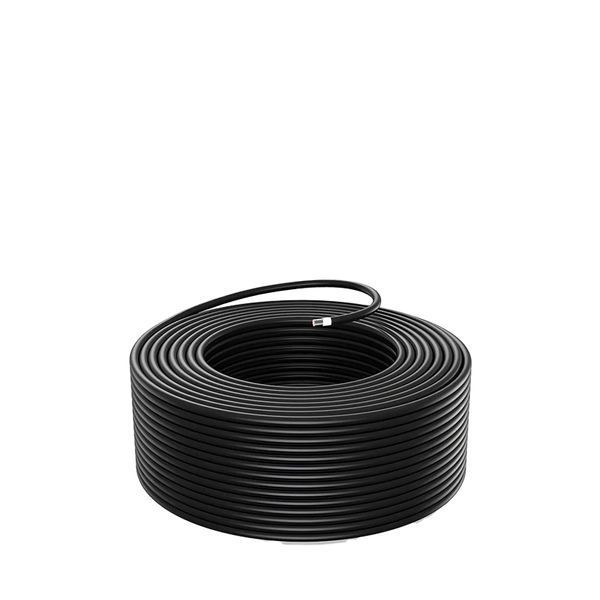

The SLL-400-FPG coaxial cable set (2 pcs × 10 m) with N male – N male connectors is a professional ready-to-use solution for telecommunication, antenna, and RF systems where low attenuation and stable performance are critical. Built on the SLL-400-FPG low-loss coaxial platform, the cables support frequencies up to 6 GHz and beyond. The UV-resistant PVC outer jacket allows both indoor and outdoor installations. N male connectors ensure reliable mating with minimal insertion loss and can be supplied with additional sealing if required.
🫡 We are a team of veterans
We are a team of veterans with hands-on experience deploying RF systems in demanding environments. We select cable assemblies that maintain electrical and mechanical integrity over long-term operation. SLL-400-FPG assemblies are proven solutions we trust in real applications.
⚙️ Technical specifications
| Parameter | Value |
|---|---|
| Number of cables | 2 pcs |
| Cable length | 10 m each |
| Connector type | N male – N male |
| Characteristic impedance | 50 ±3 Ohm |
| Capacitance | 78 ±2 pF/m |
| Velocity of propagation | 83% |
| Shielding effectiveness | >105 dB (100–2000 MHz) |
| Operating temperature | -40°C … +60°C |
| Minimum bend radius | 40 mm |
| Repeated bend radius | 80 mm |
| Outer diameter | 10.3 mm |
| Compatibility | RG8/U, LMR 400, RG-213, Low Loss 400 |
💬 Comment / comments

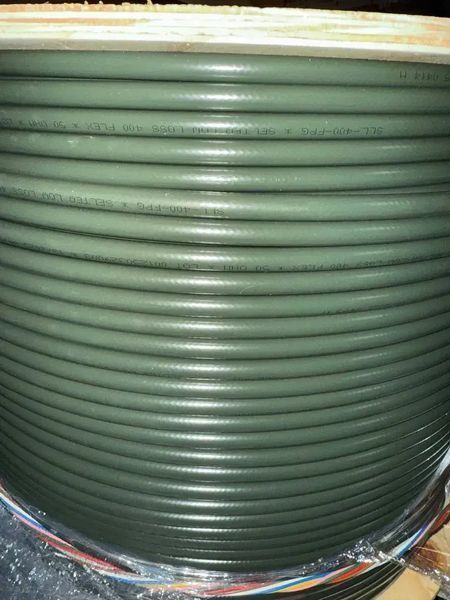

The SLL-400-FPG features a stranded copper center conductor, triple-layer high-pressure foamed polyethylene dielectric, and double shielding with copper foil and dense braid. This design delivers low attenuation, strong EMI immunity, and stable RF performance. A two-cable set is ideal for MIMO configurations, multi-antenna systems, or redundant RF links.
🎯 Who it is suitable for
Military and communication units
Telecommunication and antenna system operators
RF engineers and system integrators
Industrial, fixed, and mobile radio systems
