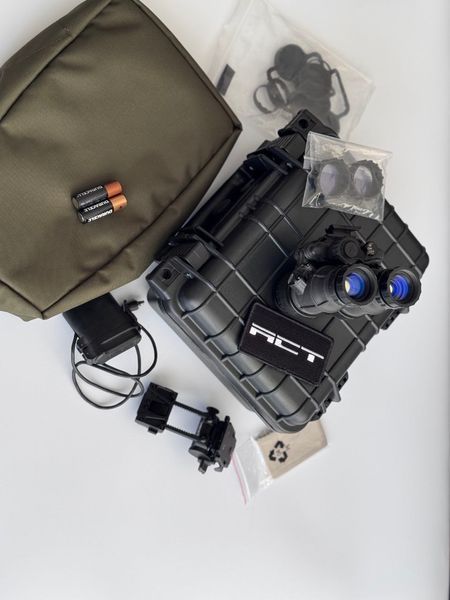

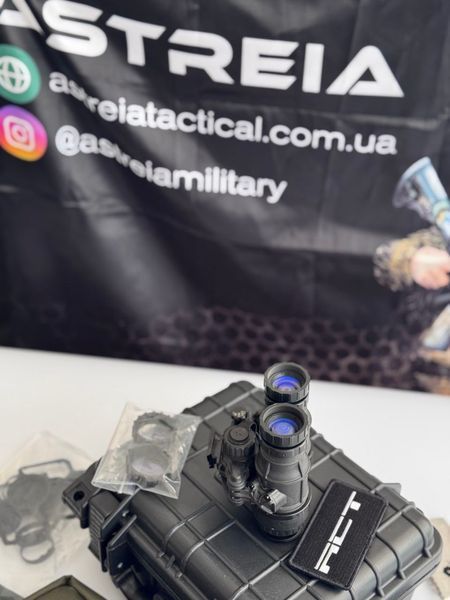

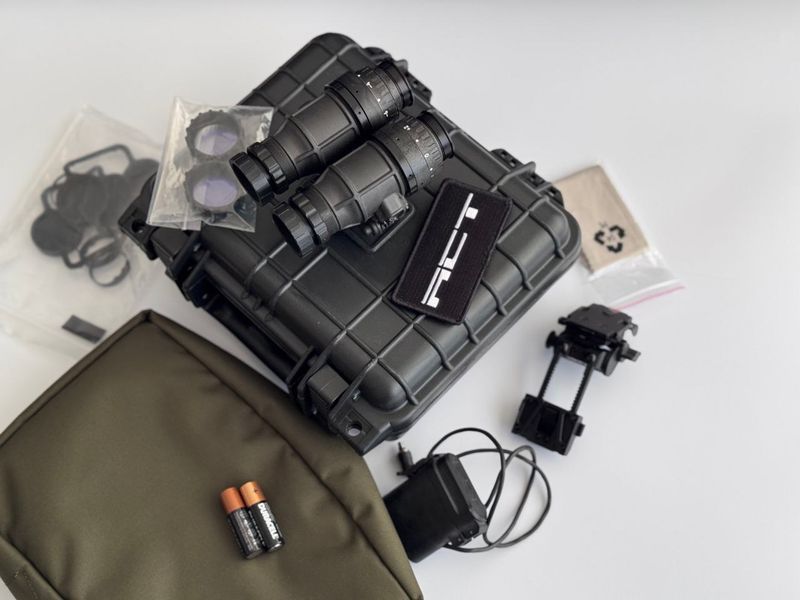

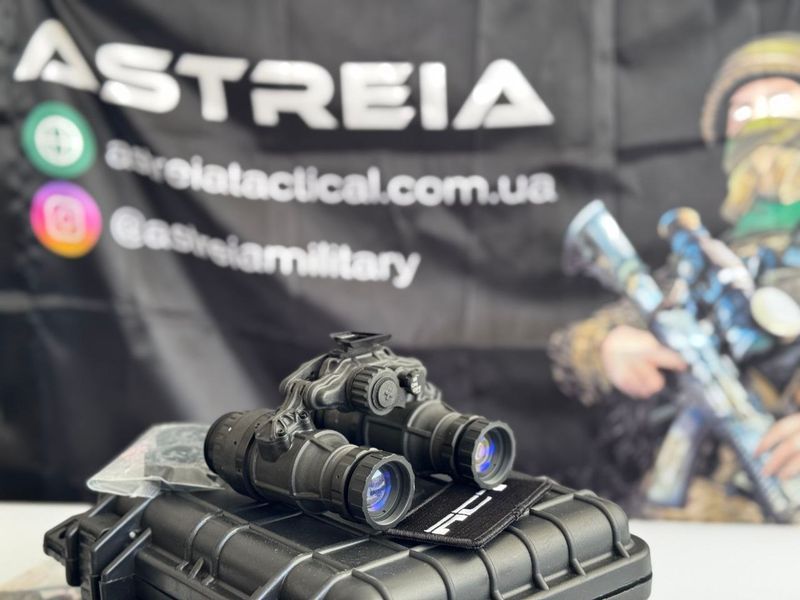

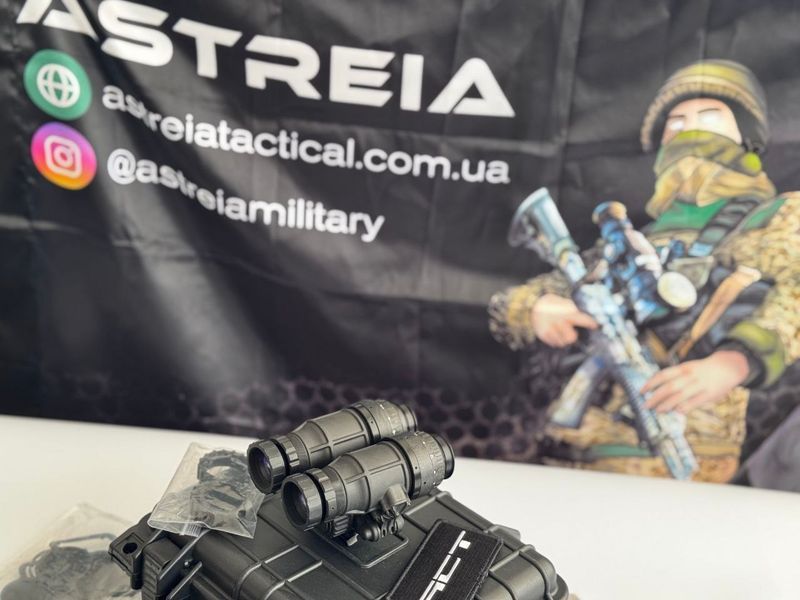

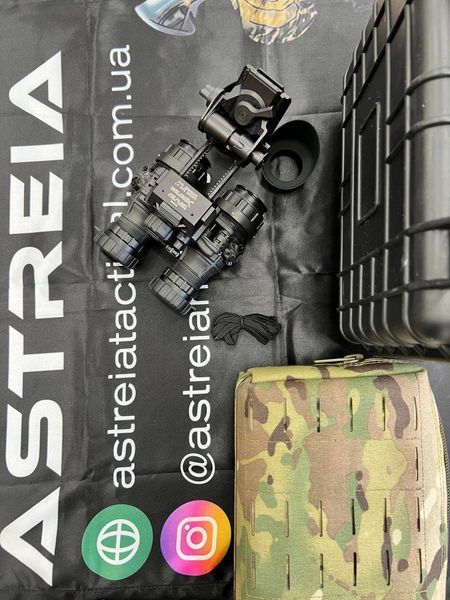

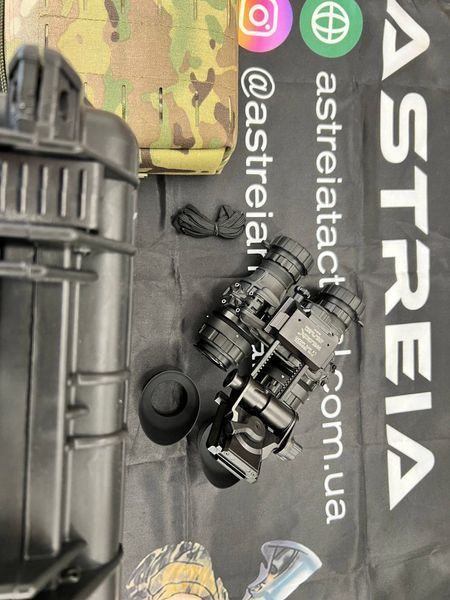

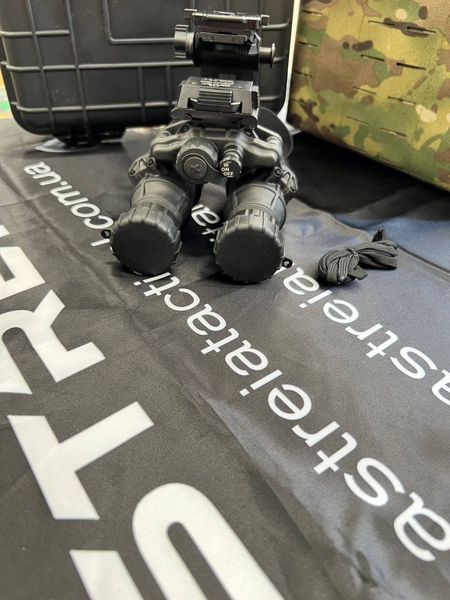

DTNVS / NVT-6 P43 is a reliable and cost-efficient night-vision system that combines the modern DTNVS (Dual Tube Night Vision System) housing with NVT-6 image-intensifier tubes featuring green phosphor (P43).
The NVT-6 tubes deliver an FOM of around 1800, SNR ≥ 25, and resolution above 64 lp/mm, making them an excellent solution for users seeking a stable, serviceable system with strong light sensitivity.
The DTNVS housing is manufactured from magnesium alloy, features IP68 moisture protection, and supports automatic power shut-off when flipped up, ensuring maximum ergonomics and comfort during field operation.
⚙️ Technical Specifications
| Parameter | Value |
|---|---|
| Housing | DTNVS (Dual Tube Night Vision System) |
| IIT Type | NVT-6 |
| Tube Format | MX10160 |
| Phosphor | P43 (green) |
| Figure of Merit (FOM) | ~1800 |
| Signal-to-Noise Ratio (SNR) | ≥ 25 |
| Center Resolution | ≥ 64 lp/mm |
| Auto-Gating | Available in extended variants |
| Power Supply | 1× CR123A or external ANVIS cable |
| Water Protection | IP68 (up to 10 m submersion) |
| System Weight (with IITs) | ≈ 460 g |
| Eyepiece Adjustment | Independent, with interpupillary adjustment |
| Mounting Interface | Helmet-mount compatible (Wilcox, Norotos, Rhino II, etc.) |
Comment / Quality Level
The NVT-6 P43 tubes represent a mid-range Gen 2+/3-class solution that delivers excellent light sensitivity and image detail without the higher cost of contract-grade Gen 3 models.
P43 green phosphor provides a classic high-contrast image with natural depth perception, remaining a standard for many training and instructional systems.
Thanks to the robust DTNVS housing, the device offers strong resistance to mechanical stress, moisture, and rapid temperature changes.
This configuration is an ideal choice for users who need proven DTNVS ergonomics and balanced performance characteristics without overpaying for premium FOM levels.
