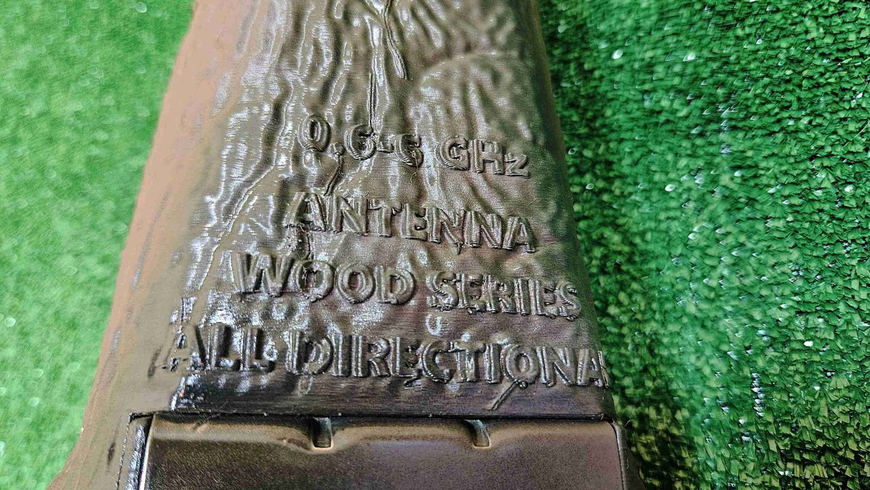

A broadband omnidirectional antenna with an operating frequency range from 600 to 6000 MHz and a gain of 3–5 dBi. It is designed for signal reception and transmission in radio communication systems, electronic warfare complexes, and airwave scanning equipment. The universal range allows replacing several highly directional antennas with one, ensuring coverage of most relevant frequencies used for controlling unmanned aerial vehicles and transmitting video.
🫡 We Are a Team of Veterans
We know that in modern conditions, the airwaves are constantly changing, and the ability of equipment to operate on non-standard or shifted frequencies often becomes decisive. This ultra-wideband antenna solves the main problem of multi-band systems: the need to constantly switch different emitters when changing operating frequencies or monitoring the radio environment.
Thanks to the 600–6000 MHz operating range, the antenna can effectively work with both low-frequency control channels and high-frequency video links. The 3–5 dBi gain and circular radiation pattern form stable coverage without blind spots around the ground station, which is important during rapid drone maneuvers or when working from mobile positions.
<b>⚙️ Technical Specifications</b>
| Operating frequency range | 600–6000 MHz |
| Gain | 3–5 dBi |
| Directivity | Omnidirectional (omni) |
| Polarization | Linear vertical |
| Impedance | 50 Ohms |
| Connector | SMA Male |
| Mounting type | On connector |
Commentary / Comments
The key advantage of this model is the phenomenal width of its operating range. It covers frequencies from 600 MHz, used for long-distance control and penetrating obstacles, to 6000 MHz, where standard video links operate, while maintaining stable gain figures at the level of 3–5 dBi. This makes it an ideal tool for SDR receivers and spectrum analysis systems.

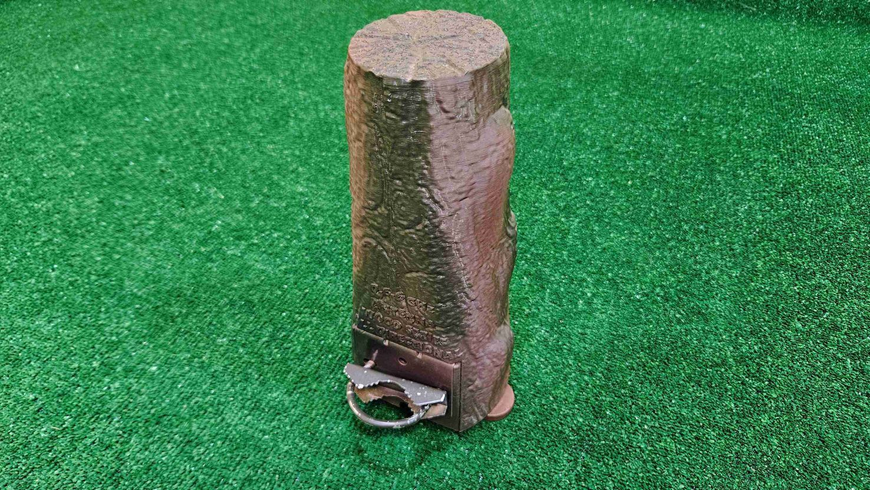

The antenna housing is made of materials resistant to ultraviolet light and temperature changes, allowing it to be installed on external masts of ground stations. The standard SMA connector guarantees a quick connection to most remote controllers, spectrum analyzers, and radio modems without the use of adapters, which typically cause additional signal loss.
🎯 Target Audience / Suitable For
Operators of electronic intelligence complexes and spectrum analyzers receive a single emitter for monitoring the entire relevant radio frequency range from 600 to 6000 MHz. The elimination of the need to change antennas during airwave scanning significantly saves time when detecting drones or active electronic warfare systems.
Military operators of non-standard UAVs and ground communication stations can use this antenna for multi-channel systems that automatically or manually frequency-hop across a wide range to bypass interference. The 3–5 dBi gain provides stable circular signal reception regardless of the aircraft's flight direction.
Technical specialists in laboratories and service centers can use this emitter as a universal testing tool when diagnosing and tuning various radio modules, eliminating the need for a separate fleet of antennas for each operating frequency.
Specialists in the development and testing of radio systems use such emitters to generate and measure signals across a wide spectrum, where stable operation at edge frequencies without a significant drop in data transmission efficiency is important.
