📝 720–1050 MHz (1 GHz) Antenna with Mast Mount Aeronetix

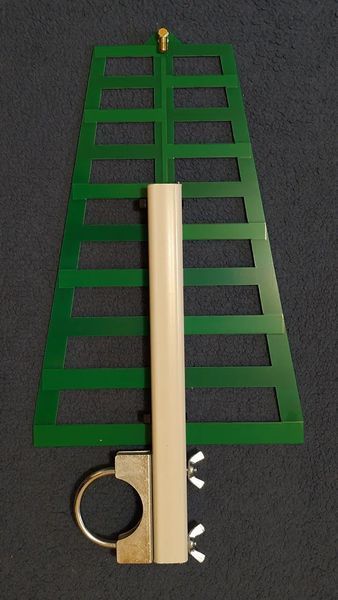

The Aeronetix 720–1050 MHz antenna is designed for operation in the 0.7–1.05 GHz frequency range and is used with drone controllers, ground stations, signal repeaters and spectrum analyzers. The antenna has a directional radiation pattern and 8–9 dBi gain, which significantly increases signal reception or transmission range compared to omnidirectional antennas. The antenna includes a mast mounting bracket for installation on a pole or tripod.

🫡 We are a team of veterans

Antennas operating in the 700–1000 MHz range are commonly used in UAV control systems and telemetry or data transmission systems. This frequency range provides a good balance between communication range, antenna size and signal stability. A directional antenna allows concentrating signal in the required direction, significantly increasing ground station or repeater range.

⚙️ Specifications

Parameter	Value
Type	Directional antenna
Application	UAV control / spectrum analysis
Frequency range	720–1050 MHz
Gain	8–9 dBi
Beamwidth	80° / 55°
Connector	SMA
Mount	Mast mount up to 32 mm
Dimensions	280×185×15 mm
Weight	80 g
Cable	Not included

💬 Comment / comments

The antenna is used for signal reception or transmission in the 720–1050 MHz range. The 8–9 dBi gain increases communication range and signal stability compared to omnidirectional antennas. Can be used on ground stations, repeaters or spectrum analyzers. The mast mount allows installation on poles, tripods or ground station structures.

🎯 Who it is suitable for

Military units and UAV operators.
Used on ground control stations or repeaters to increase communication range with UAVs. The directional antenna concentrates signal toward the UAV flight direction. Suitable for control, telemetry or data transmission systems in the 720–1050 MHz range.

FPV drone operators.
Suitable for control or telemetry systems around the 1 GHz band. Provides longer communication range compared to omnidirectional antennas. Can be used on ground stations or repeaters.

Engineers and UAV builders.
Used for building ground stations, repeaters or data transmission systems. The mast mount allows proper antenna orientation for maximum communication range.

Radio amateurs and RF specialists.
Suitable for operation in the 720–1050 MHz range, spectrum analysis, radio link building and data transmission. Can be used with spectrum analyzers and radio equipment.
