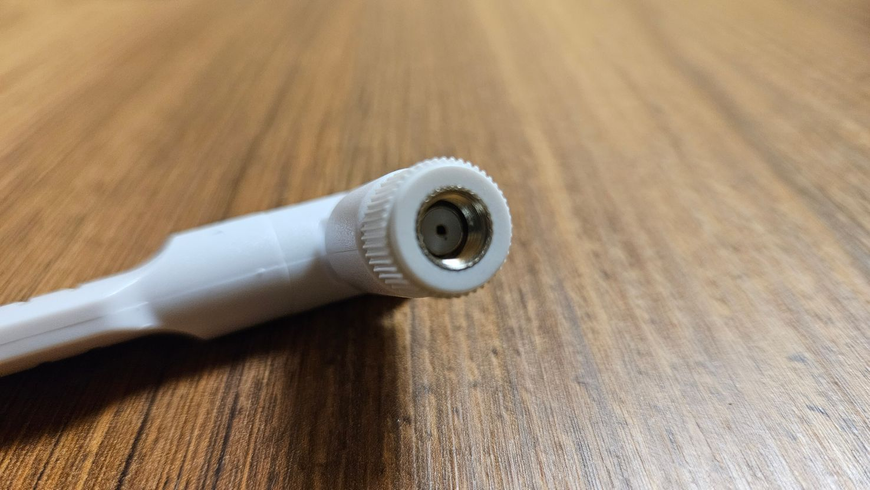

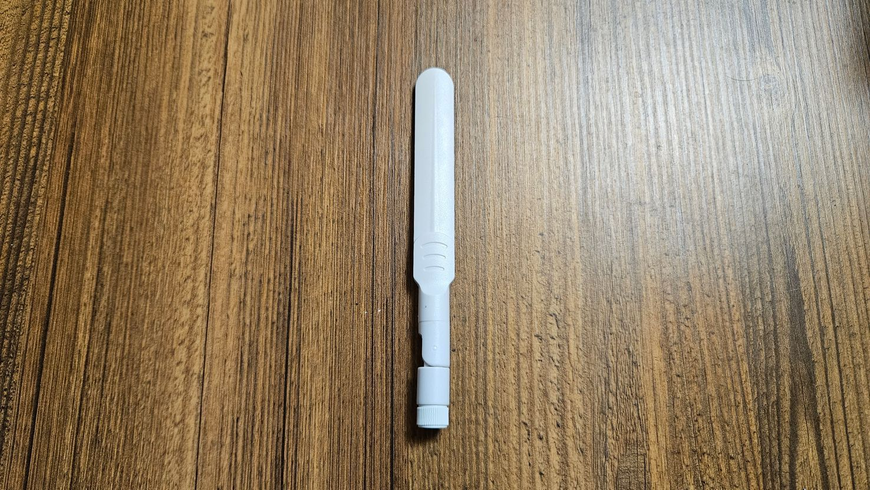

2.4/5.8 GHz Antenna (Wi-Fi), Swivel, 5 dBi

The dual-band 2.4/5.8 GHz swivel antenna with a 5 dBi gain is designed to improve signal reception and transmission quality in wireless networks, UAV control systems, and video links. The articulated mechanism allows adjusting the tilt angle of the emitter to fine-tune polarization and optimize the coverage area. The antenna operates effectively in both common radio bands, ensuring compatibility with a wide range of transmitting and receiving equipment.

🫡 We Are a Team of Veterans
We know that in field conditions, the ability to quickly adapt equipment to the current radio environment is critical. This dual-band antenna draws attention precisely because of its swivel mechanism: changing the tilt angle allows you to quickly adjust the radiation pattern without having to move the entire ground station or remote controller.

Operating simultaneously in two bands (2.4 and 5.8 GHz) makes it a versatile solution. When the airwaves on one frequency are congested with interference, the operator can switch the system to another band, and the antenna will continue to perform with the stated 5 dBi gain without the need to physically replace the emitter.

⚙️ Technical Specifications

Operating frequencies	2.4 GHz / 5.8 GHz
Gain	5 dBi
Directivity	Omnidirectional (omni)
Design	Swivel (articulated)
Polarization	Linear
Impedance	50 Ohms
Connector	SMA / RP-SMA (depending on modification)
Housing material	Plastic

Commentary / Comments
The key advantage of this model is the combination of an omnidirectional pattern and a 5 dBi gain, providing uniform spatial coverage around the emitter with an extended range compared to standard 2-3 dBi antennas. The swivel joint locks into several positions, helping to align polarization with the antenna on the aircraft.

The outer shell is made of durable polymer, protecting internal elements from moisture and dust. Thanks to the standard threaded connection, installation takes seconds, and the compact dimensions when folded make it easier to transport equipment in backpacks or protective cases.

🎯 Target Audience / Suitable For
Operators of unmanned aerial systems receive a versatile tool for remote controllers and ground stations operating in the 2.4 or 5.8 GHz bands. The swivel design allows for quick adjustment of the antenna's tilt angle to achieve the best signal level depending on the drone's position in space, while the 5 dBi gain extends the range of confident control.

Technical specialists involved in configuring and repairing communication equipment can use this antenna as a reliable universal emitter for testing various transceiver modules. The dual-band capability eliminates the need to keep several different antennas on hand during the diagnosis of video link and telemetry systems.

Users of industrial and consumer wireless networks gain the ability to improve radio signal coverage indoors or in open areas. Replacing standard weak antennas with a 5 dBi version helps eliminate blind spots and increase overall connection stability.
